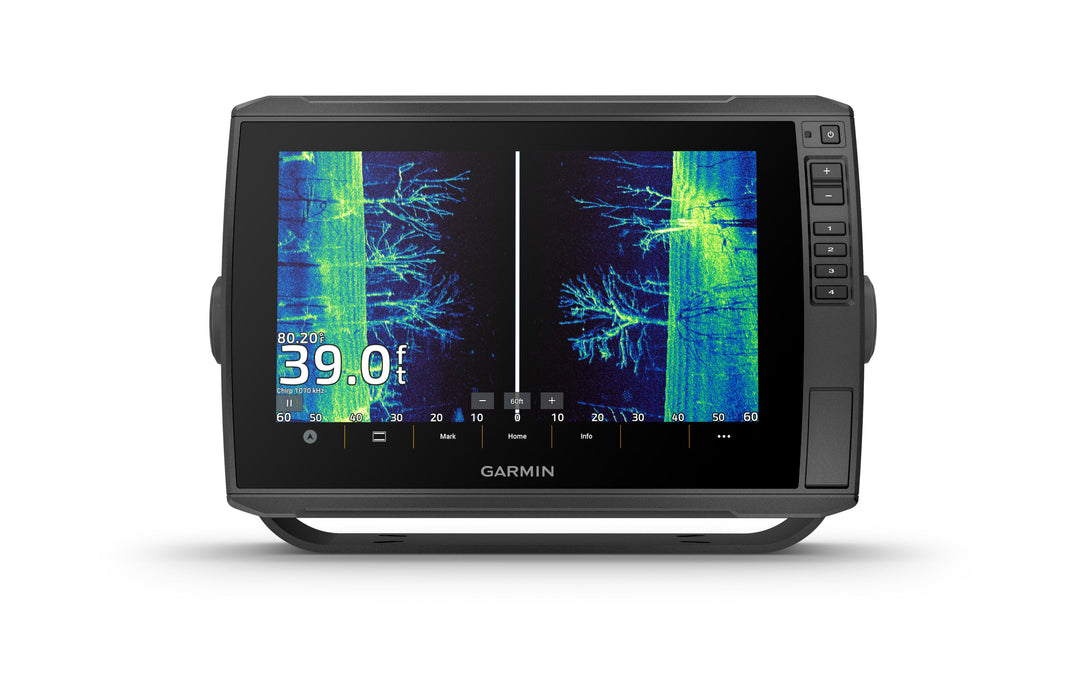

ECHOMAP™ Ultra 2 10" Chartplotter-106sv Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
The ECHOMAP Ultra 2 supports Livescope™ Sonar1 and other features, allowing users to delve into advanced underwater imaging. With built-in Garmin Navionics+ mapping, navigating becomes seamless and efficient. Its wireless networking capability enables the convenient sharing of sonar data, waypoints, and routes among connected devices. Users can capture screen recordings to share their fishing triumphs, enhancing the fishing community's experience. Moreover, the multi-band GPS ensures superior position accuracy, enhancing overall navigation precision.
Included without Transducer: ECHOMAP Ultra 106sv with Garmin Navionics+, Power/data cable, Bail mount with quick release cradle, Protective sun cover, 8-pin transducer to 12-pin sounder adapter cable, Hardware, Documentation
Included with Transducer: ECHOMAP Ultra 106sv with Garmin Navionics+, GT56UHD-TM transducer, Power/data cable, Bail mount with quick release cradle, Protective sun cover, Hardware, Documentation
ECHOMAP™ Ultra 2 10" Features
LIVESCOPE™ SONAR SUPPORT
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers included if selected).
BUILT-IN UHD SONAR
Bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
PRELOADED CHARTS
Experience unparalleled coverage and detail. Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more.
PREMIUM MAP UPGRADES
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
WIRELESS NETWORKING
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them.
ECHOMAP™ Ultra 2 10" Specs
- Touchscreen
- GPS
- Glonass
- Galileo
- Beidou
- Built-in Receiver
- NMEA 2000
- Supports WAAS
- Supports Mulit-Band, Mult-Constellation GPS
- Built-in Auto Guidance+
- Bluechart G3
- Bluechart G3 vision
- LakeVu G3
- LakeVu G3 Ultra
- Garmin Navionics+
- Garmin Navionics Vision+
- Topo 100K
- Standard Mapping
- Garmin Quickdraw CONTOURS
- AID
- DSC
- Supports Fusion-Link Compatible Radios
- ActiveCaptain Compatible
- Sailing Features
- Displays Sonar
- Paoptix Sonar
- Livescope
- ANT+
- Garmin Wi-i Network
-
Physical Dimensions: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
-
Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
-
Display Resolution: 1280 x 800 pixels
-
Display Type: WVGA, IPS
-
Weight: 4.0 lbs (1.8 kg)
-
Mounting Options: Bail or flush
-
Water Rating: IPX7
-
Card Slots: 2 microSD cards
-
Waypoints: 5,000
-
Track Points: 50,000 points
-
Tracks: 50 saved tracks
-
navigation Routes: 100
-
Receiver: 10 Hz
-
Power Output: 600 W
-
Traditional Sonar: built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜ: built-in 260/455/800/1000/1200 kHz
SIDEVÜ: built-in 260/455/800/1000/1200 kHz
-
Power Input: 9 to 18 Vdc
-
Typical Current Draw at 12 VDC: 2.3 A
-
Maximum Current Draw at 12 VDC: 5.0 A
-
Maximum Power Usage at 10 VDC: 34W
