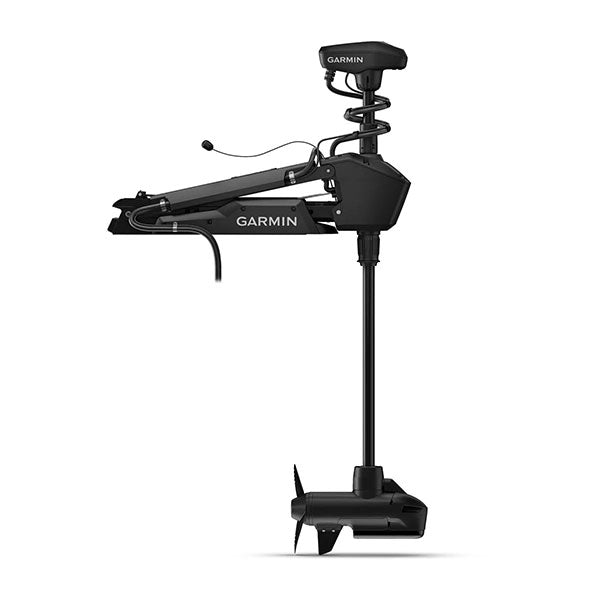

Force® Pro Trolling Motor with Built-In GT56UHD-TR Transducer
Move fast, move quiet with the Force Pro trolling motor — engineered with a powerful motor and our most precise positioning technology.
The Garmin Force Pro Trolling Motor is the latest innovation in marine technology, offering unparalleled power, efficiency, and integration for both freshwater and saltwater anglers. Designed to enhance your fishing experience, the Force Pro combines advanced features with user-friendly operation.
With the Garmin Force Pro Trolling Motor, anglers can expect a powerful, efficient, and intuitive system that enhances their time on the water, providing a significant advantage in any fishing scenario.
Included: Force® Pro Trolling Motor, High efficiency propeller, Weedless propeller, Foot pedal, Remote, Stabilizer, Assembly and mounting hardware, Documentation
Garmin Force Pro Specs
| ✔ |
Electric Steering |
| ✔ |
Built-in Heading Sensor |
| ✔ |
Battery Indicator |
| ✔ |
Wireless Remote |
| ✔ |
Lighted Direction Indicator |
| ✔ |
Route Following |
| ✔ |
Anchor Lock |
| ✔ |
Smart Anchor Lock Features |
| ✔ |
Anchor Lock Jog |
| ✔ |
Heading Hold |
| ✔ |
Cruise Control |
| ✔ |
Gesture Features |
| ✔ |
Wireless Communication |
| ✔ |
Adjustable Pedal Resistance |
| ✔ |
Chartplotter User Programmable Keys |
| ✔ |
Autopilot Feature Control |
| ✔ |
Floats |
-
Shaft length: 50"/57"
-
For use in: freshwater, brackish water and saltwater
-
Mounting Location: Bow
-
Mount style: Scissor style mount
-
Max thrust: 100 lbs per ISO 13342 using high efficiency propeller at 36 V, 80 lbs per ISO 13342 using high efficiency propeller at 24 V
-
Voltage: 24 V or 36 V
-
Lift-assist: Dual Gas Springs
-
Built in GPS: Yes (Dual Frequency GPS)
-
Water rating (components above water): IPX7
-
Frequencies supported: Traditional: CHIRP High Wide (140-240 kHz); ClearVü/SideVü: 455 kHz, 800 kHz, 1 MHz
-
Transmit power: Traditional: 350 W, ClearVü/SideVü: 500 W
-
Published sonar depth/distance: Traditional: up to 800 ft; ClearVü: up to 400 ft at 455 kHz and 200 ft at 1 MHz; SideVü: up to 500 ft each side at 455 kHz when depth is no more than 100 ft, and up to 200 ft each side at 1 MHz when depth is no more than 50 ft. Actual results depend on water salinity, bottom type and other water conditions.
-
Number of pins: 12-pin (orange connector)
-
Foot Pedal Dimensions: 12" L x 9" W x 4 1/2" H
-
Power installation: 12 V/24 V/36 V wired or battery powered (2 AA)
-
Remote Display size: 1.2" (30.2 mm) diameter
-
Remote Display resolution: 240 x 240 pixels
-
Remote Display type: Color, sunlight-visible, transflective memory-in-pixel (MIP)
-
Remote Battery life: Typical use with backlight at low, 43 weeks
Trolling Motor Features
High-Powered
The brushless motor on Force Pro provides legendary power and performance, as well as premium efficiency, with 100 lbs of thrust.
Stay Put
The anchor lock feature provides our most precise boat positioning technology with new multi-band GPS, plus reverse prop spin and calm-water cable unwrap help reduce motor activity.
Floating Remote
Use the included remote to help you navigate from anywhere in the boat with our simple point-and-go technology.
Smart Watch Integration
Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.
Wireless Control
Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control.
Perfect for Bass Boats
Deploy and stow the motor with ease, thanks to dual gas springs and a durable pull cable. The 50-inch and 57-inch shaft lengths accommodate different boat sizes and deck configurations. And the included weedless and high-efficiency propellers can be easily swapped as needed.
Lighted Indicator
Fish in low light, and always know what direction you’re headed with the lighted indicator on the trolling motor shaft cap.
Built-In Sonar
This trolling motor includes the improved all-in-one GT56UHD-TR transducer, so you can see everything around your boat with brilliant high-definition scanning sonar and extremely low levels of sonar noise.
Chartplotter Integration
Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.
Frequently Asked Questions About the Garmin Force Pro
What boats and water types is the Garmin Force Pro designed for?
The Force Pro is a bow-mount trolling motor designed for freshwater, brackish water and saltwater, fitted to the bow deck of boats that can carry a 50- or 57-inch shaft, such as bass and multi-species rigs. The bow deck has to be strong enough for the motor's weight and working loads, so a backing plate or reinforcement is often needed. The mount installs with its bumper overhanging the gunwale and the deployed motor as close to the boat's centerline as the deck allows, with clear travel between the stowed and deployed positions and no large metal objects near the display panel, which can disturb the compass and autopilot. Send us your bow measurements and we will help confirm the fit.
How should I choose between the 50-inch and 57-inch Force Pro shaft?
Choosing a Force Pro shaft starts with a measurement, not with your boat's length. Measure from the top of the bow mounting surface down to the waterline with the boat loaded the way you fish it, then add enough shaft to keep the propeller well submerged when the bow rises and the water turns choppy. Freeboard, mounting height, load and typical conditions all move the answer, so no shaft length follows from overall boat length alone. The 50-inch suits lower-freeboard bow decks; the 57-inch suits taller bows or rougher water. A shaft that is too short ventilates and loses bite. Call 844-987-5777 or start a chat with your measurements and we will work through it with you.
How much thrust does the Force Pro produce at 24 volts versus 36 volts?
The Force Pro is rated for a maximum of 80 pounds of thrust at 24 volts and 100 pounds of thrust at 36 volts, each figure measured per ISO 13342 with the high-efficiency propeller fitted, in relatively calm water and with the motor deployed deeply enough not to ventilate. Those are static forward-thrust figures from a defined test, not a boat-speed or range claim: hull weight, wind, current and battery condition all decide what the motor does on your water. The published thrust ratings use the included high-efficiency propeller; a weedless propeller is also included for fishing around vegetation. A 36-volt bank reaches the higher published maximum thrust. Choose the battery-bank design based on the desired thrust, battery chemistry and capacity, available space, weight and charging setup.
What battery setup and circuit protection does the Force Pro require?
The Force Pro connects to a 24- or 36-volt battery bank capable of supplying 60 amps continuously, and it must be wired through a circuit breaker rated for 60 amps continuous, which is not included. Published input is 20 to 45 Vdc at 60 amps continuous, so the breaker needs a rating of 42 Vdc or greater. Batteries, a charger, the breaker and any cable extension are separate purchases, and a trolling-motor plug and receptacle rated for 60 amps or more can be fitted for convenience. The full requirements are set out in the Force Pro installation power requirements. Contact us before ordering if you want help matching batteries, breaker and cabling to your boat.
Is the GT56UHD-TR transducer included with the Force Pro, and what sonar does it support?
Yes — both Force Pro configurations on this page ship with the GT56UHD-TR transducer built into the motor's lower unit. It supports traditional High-Wide CHIRP sonar from 140 to 240 kHz, plus ClearVü and SideVü scanning at 455 kHz, 800 kHz and 1 MHz, with 350 watts of traditional transmit power and 500 watts on each scanning channel. Actual depth and side range depend on frequency, water salinity, bottom type and other water conditions. Viewing that sonar requires a compatible Garmin chartplotter with a matching 12-pin sonar port, and no chartplotter is included here. LiveScope live sonar is a separate system and is bought separately.
What controls come with the Force Pro?
The Force Pro configurations on this page include both the floating wireless remote and the wireless foot pedal, so no control accessory has to be added before the motor can be used. The remote uses point-and-go gesture steering and a 1.2-inch sunlight-visible color display; the foot pedal measures 12 by 9 by 4.5 inches and has adjustable pedal resistance. A compatible Garmin chartplotter can also drive the motor once the two are paired and the chartplotter is on its latest software, and a compatible Garmin smartwatch can control steering, anchor lock and more from the wrist. Chartplotters and watches are sold separately.
How do Anchor Lock and chartplotter integration work on the Force Pro?
Anchor Lock uses the Force Pro's built-in multi-band GPS and heading sensor to steer and run the propeller automatically so the boat holds a position, and the anchored spot can be nudged with the remote's arrow keys or by gesture. Heading Hold, Cruise Control and route following work the same way, and every autopilot mode needs a GPS fix and a calibrated motor compass before it will engage. Chartplotter integration is wireless: the chartplotter hosts the network and must be running its latest software, and where several are installed only one can be the host. Once paired, the trolling motor bar on the chartplotter controls the motor and follows routes.
What comes in the Force Pro box, and what has to be bought separately?
This page's Force Pro configurations include the motor with its built-in GT56UHD-TR transducer, the wireless remote, the wireless foot pedal, a high-efficiency propeller, a weedless propeller, a stabilizer, assembly and mounting hardware, and documentation. Bought separately: the 24- or 36-volt batteries, a battery charger, the required 60-amp continuous circuit breaker, any chartplotter or smartwatch you want to pair, and any LiveScope equipment. No battery and no charger is included with anything on this page. If you are pricing a complete installation, contact us and we will list the additional parts your boat needs.
How long will the Force Pro run on a charge?
The Force Pro has no single published runtime and we will not invent one, because runtime depends on the usable capacity and chemistry of your battery bank, its age and state of charge, the speed settings you use, hull weight, wind, current, and how much of the day the motor spends holding position. What is published is current draw: the motor is rated at 60 amps continuous, and draw climbs steeply as propeller speed rises, so most fishing days are spent well below maximum. Sizing the bank to the way you actually fish matters more than any headline figure. Call 844-987-5777 or email sales@ecofishingshop.com and we will help you size it.
What warranty applies to the Force Pro?
The Force Pro carries a three-year limited warranty from the date of first purchase for recreational, noncommercial use, reduced to one year where the motor is put to any commercial use, and the composite shaft carries coverage for the lifetime of the original customer under noncommercial use. That shaft coverage is nontransferable and removal and installation costs fall to the owner. Corrosion is excluded, as is damage from inadequate cleaning or improper service of a motor used in salt or brackish water, so rinsing with fresh water after every trip is part of keeping coverage. Keep a dated invoice. Full terms are in the trolling motor warranty policy.
