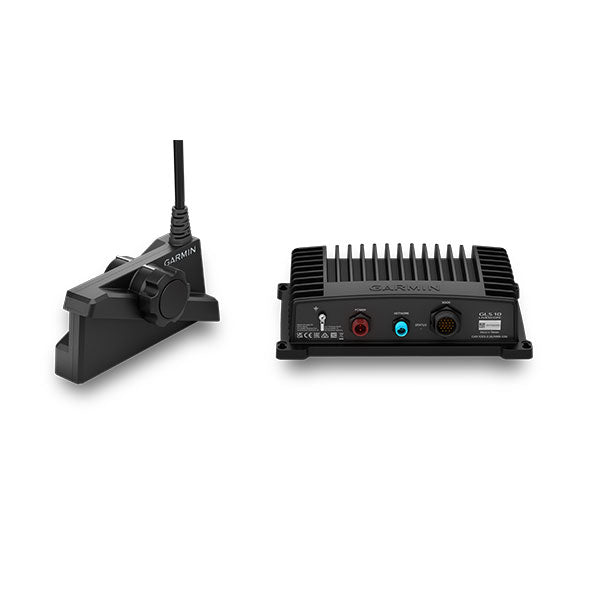

LiveScope™ Plus Ice Fishing System
The LiveScope™ Plus Ice Fishing System takes ice fishing to a new level with real-time scanning sonar that offers dramatically improved resolution, reduced noise, clearer images, and superior target separation. It gives anglers a crystal-clear view beneath the ice, making it easier than ever to identify fish and structures with precision.
With dual sonar modes in a single transducer, you can adapt to any situation on the ice. LiveScope Forward provides a sweeping 200-foot radius view ahead and around your location to help you locate fish before you drill, while LiveScope Down focuses directly beneath you so you can watch in real time as fish respond to your jig.
This system comes as a complete ice-fishing-ready kit, including the LiveScope Plus system with LVS34 transducer and GLS 10 sonar module, a swivel-pole or ice-fishing mount, rugged carrying case, power cables, and a choice of lead-acid or lithium-ion battery with charger. It’s designed for seamless portability, making it easy to take from your boat to the ice without missing a beat.
Compatible with select Garmin chartplotters such as ECHOMAP and GPSMAP models, the LiveScope Plus Ice Fishing System ensures a smooth and integrated setup. The included carrying case keeps your display and accessories organized and protected, allowing you to move efficiently from hole to hole.
With outstanding target separation and crisp, virtually artifact-free sonar images, this system delivers unmatched underwater clarity. Whether you’re tracking the movement of your jig or studying fish behavior in detail, the LiveScope Plus gives you the awareness and precision needed to maximize your time on the ice.
![LiveScope™ Plus Ice Fishing System]()
LiveScope™ Plus Ice Fishing System Specs
-
Transducer Beamwidth: 20° x 135°
-
Transducer Cable Length: 20 ft
-
Transducer Number of Pins: 21
-
GLS 10 Sonar Black Box Dimensions: 9.7” x 5.9” x 2.6”
-
LiveScope Plus LVS34-IF Transducer Dimensions: 6.4” x 3.1” x 1.9”
-
GLS 10 Sonar Black Box Weight: 4.3 lbs
-
LiveScope Plus LVS34-IF Transducer Weight: 2.25 lbs
-
Water Rating: IPX7
-
Power Input: 10-32 V
-
Power Usage: 21 W typical, 58 W max
-
Fuse: 10 A
-
Compass-Safe Distance: 4"
-
Frequency: 530 - 1,100 kHz
-
Transmit Power: 500 W
-
Maximum Depth: Down and Forward 200’
-
Sonar Type: Live
-
Garmin Marine Network Ports: 1 (small connector)
-
Included: LiveScope Plus LVS34-IF transducer, LS™ 10 sonar module, 0-degree pole mount, Lithium ion four-in-one power cable, Hardware, Documentation
LiveScope™ Plus Ice Fishing System Features
-
Customize Your View: Switch up the view on your chartplotter with layout options such as range, gain, color limit and color brightness. Choose from vivid color palettes to see fish and structure in maximum contrast and clarity.
-
LiveScope Forward: LiveScope Forward mode shows up to 200' all around you, so you can locate schools of fish and know where to drill the next hole.
-
LiveScope Down: LiveScope Down mode homes in on targets, so you can watch how fish respond to your jig.
-
See Fish in Real Time: Easy-to-interpret live-scanning sonar lets you clearly see images of fish and structure. See your jig as it moves, and even distinguish between species of fish swimming around and below you.
-
Clear Vision: See exactly what you need with reduced noise and fewer artifacts that impede your picture of fish and structure.
-
Two Modes, One Transducer: Adapt your fishing technique with the LiveScope Plus transducer with live, real-time scanning sonar that lets you see under the ice — up to 200' in any direction.
