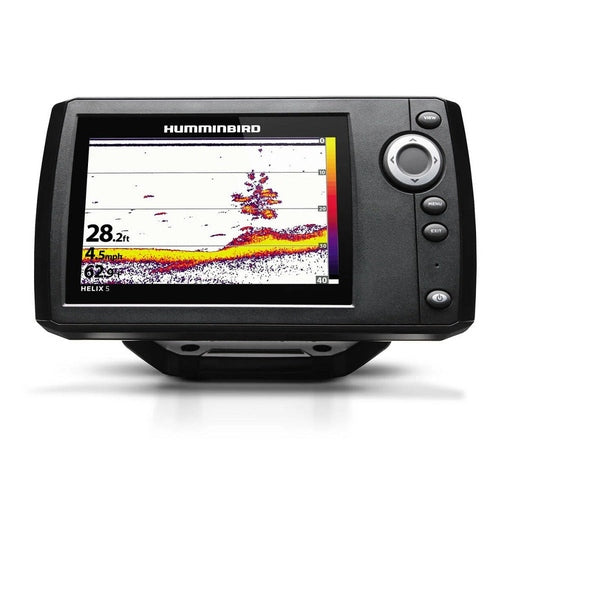

Humminbird HELIX 5 SONAR G2 Fish Finder

Name: Humminbird HELIX 5 SONAR G2 Fish Finder
Brand: Humminbird
SKU: WTHUM4101901
Price: 219.99 USD
Availability: OutOfStock

Sold out

$219.99 - $219.99

$219.99

$219.99 - $219.99

$219.99

✓ Authorized Humminbird Dealer
✓ Lowest Price Guaranteed
✓ Free & Fast Shipping: In Stock & Ready to Ship
✓ Questions? Call a Humminbird Expert: 1-844-987-5777

Description

Humminbird Helix 5 Sonar G2

Model: 410190-1
UPC: 082324048999

SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
DualBeam Plus Sonar - Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section

The HELIX 5 Sonar G2 with our new user interface and operating system, features a brilliant 800H x 480V, 5"" 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 fishfinder system.

Specifications

Display size	5 in
Display resolution	800 x 480
Display type	Color TFT
Display colors greayscale	16-bit
Standard sonar	DualBeam PLUS
Standard sonar coverage	20° & 60° @ -10db
Standard sonar frequency	200/83 kHz
Target separation	2.5 in
Power output RMS	500 watts
Power output Peak to Peak	4000 watts
Temperature	Built-in transducer
Speed	Optional
Backlight	LED
Switchfire sonar	Yes
Split screen zoom	Yes
Split screen bottom lock	Yes
Large digits view	Yes
Selective FishID	yes
Card reader	No
Input Voltage	10.8-20 VDC
Input Draw	650 mA
Dimensions	Gimbal Mount:7.55""W x 4.64""H x 3.3""D Gimbal Mount:7.55""W x 4.64""H x 3.3""D

What's in the Box:

Helix 5 Sonar G2
Bracket
Powercord
XNT 9 20 T transom mount transducer
Documentation
