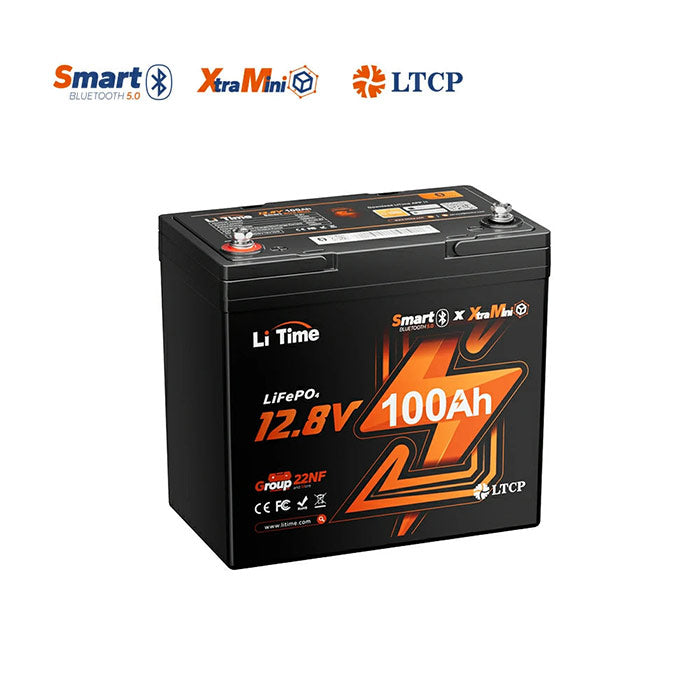

LiTime 12V 100Ah Xtra Mini Bluetooth Lithium Battery
The LiTime 12V 100Ah Xtra Mini Bluetooth Lithium Battery packs the same 12.8V, 100Ah, 1280Wh LiFePO4 cell capacity as LiTime's standard 12V 100Ah battery into a smaller Group 22NF case, measuring 9.02" L x 5.43" W x 8.19" H. At 19.13 lbs (8.7 kg), it's about 23% lighter and takes roughly half the space of LiTime's standard-size 12V 100Ah battery, aimed at anglers and RV owners who need full 100Ah capacity but limited battery-tray space.

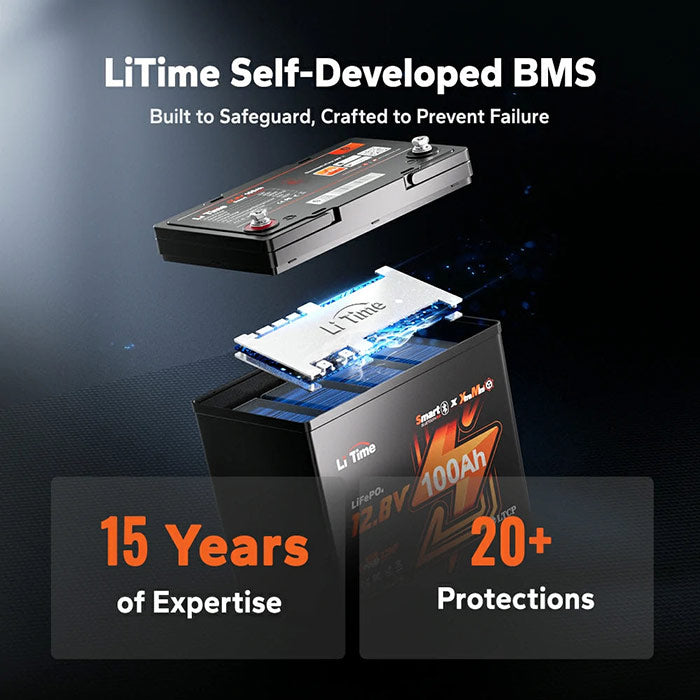

The BMS supports 100A of continuous discharge and charge, with a 500A surge rating for 1 second, and includes over 20 protections such as overcharge, over-discharge, over-current, over-heat, and short-circuit protection, plus a 30-second auto-recovery from overload. The IP65-rated housing stops water and dust intrusion, and low-temperature protection cuts off charging below 32°F (0°C) and discharging below -4°F (-20°C), resuming above 41°F (5°C).
Bluetooth 5.0 connects to the LiTime app for real-time monitoring of state of charge, voltage, current, power, cycle count, and temperature, plus remote discharge control. It's rated for 4,000 cycles at 100% depth of discharge, 6,000 at 80% DOD, and 15,000 at 60% DOD, backed by a 5-year warranty.
LiTime Xtra Mini 12V 100Ah Specifications
- Chemistry:
- LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage:
- 12.8V
- Capacity:
- 100Ah / 1280Wh
- Weight:
- 19.13 lbs (8.7 kg)
- Dimensions:

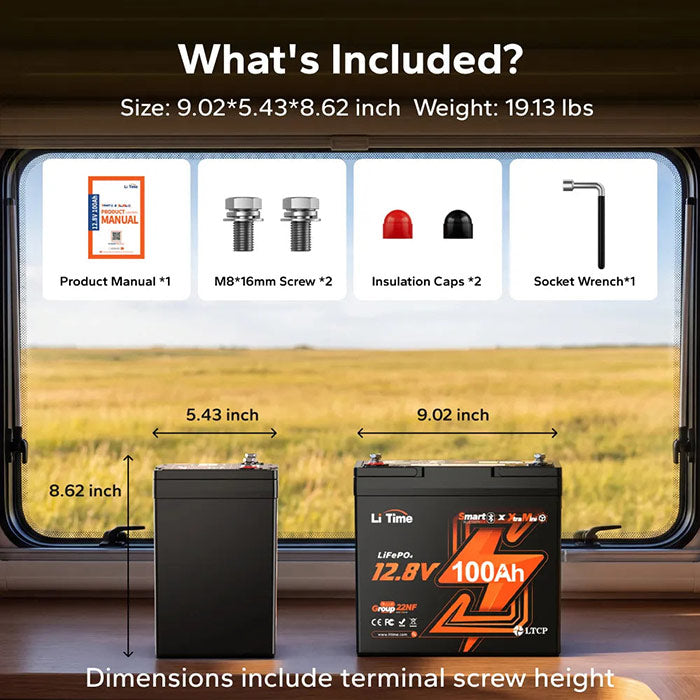

- 9.02" L x 5.43" W x 8.19" H (Group 22NF)
- Max Continuous Discharge:
- 100A
- Max Surge Discharge:
- 500A (1 second)
- Max Continuous Charge:
- 100A
- Cycle Life:
- 4,000 cycles at 100% DOD, 6,000 at 80% DOD, 15,000 at 60% DOD
- Ingress Protection:
- IP65 (waterproof and dustproof)
- Connectivity:
- Bluetooth 5.0, LiTime app
- Warranty:
- 5-Year
LiTime 12V 100Ah Xtra Mini Features
-

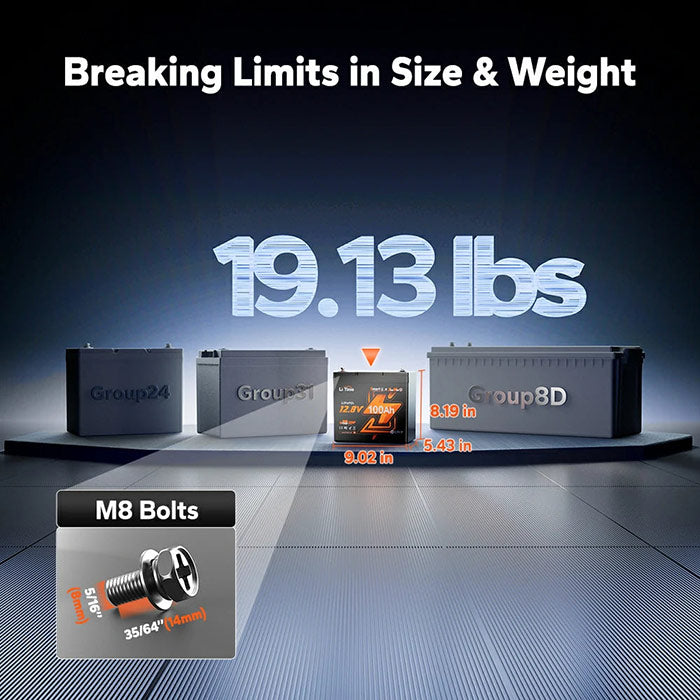

Compact Group 22NF Footprint: Delivers full 100Ah/1280Wh capacity in a smaller, lighter case than a standard Group 31 battery.
-
19.13 lb Total Weight: About 23% lighter than LiTime's standard-size 12V 100Ah battery.
-

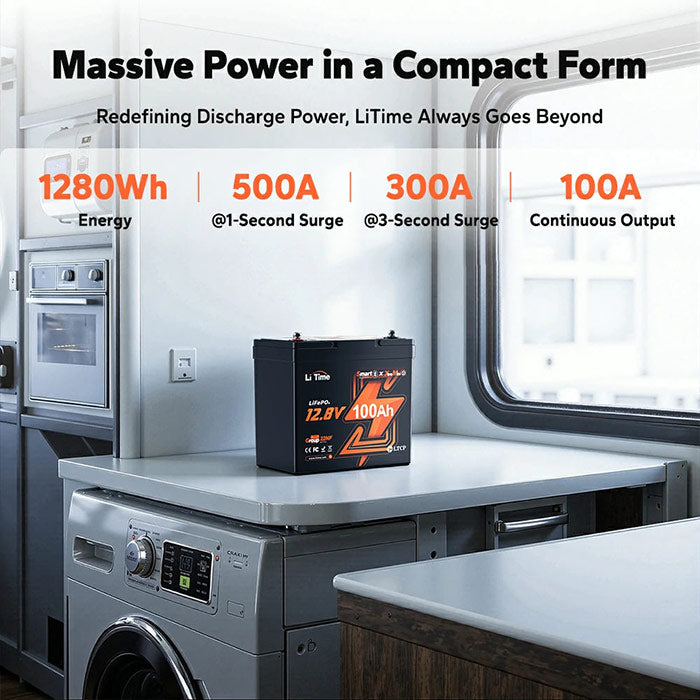

100A Continuous, 500A Surge: Matches the discharge performance of LiTime's full-size 12V 100Ah battery.
-
IP65 Rated with 20+ Protections: Waterproofing and BMS safeguards built for marine and RV use.
LiTime Xtra Mini 12V 100Ah FAQs
What makes the LiTime Xtra Mini different from LiTime's standard 12V 100Ah battery?
The Xtra Mini delivers the same 100Ah, 1280Wh capacity as LiTime's standard 12V 100Ah battery, but in a smaller Group 22NF case (9.02" L x 5.43" W x 8.19" H) at 19.13 lbs, about 23% lighter than the standard Group 31 version. It's aimed at setups with limited battery-tray space that still need full 100Ah capacity.
Does the smaller size reduce the Xtra Mini's power output?
No. The Xtra Mini supports the same 100A continuous discharge and charge rating, with a 500A surge for 1 second, as LiTime's standard-size 12V 100Ah battery. The smaller case reduces footprint and weight, not electrical performance.
Does the LiTime Xtra Mini have cold-weather protection?
Charging automatically stops below 32°F (0°C) and discharging stops below -4°F (-20°C), resuming once the battery warms back above 41°F (5°C). This model doesn't include a self-heating function, so it needs to warm up passively before it will accept a charge in freezing conditions.
What can I monitor with the LiTime app on the Xtra Mini?
Bluetooth 5.0 connects to the LiTime app for real-time monitoring of state of charge, voltage, current, power, cycle count, and temperature, along with remote discharge control.
What warranty covers the LiTime Xtra Mini?
LiTime backs the Xtra Mini with a 5-year warranty. LiTime's product page does not publish the full written terms, coverage exclusions, or claims process, so we can't state those specifics here. Contact us and we'll get you the exact terms before you buy if that's a deciding factor.
