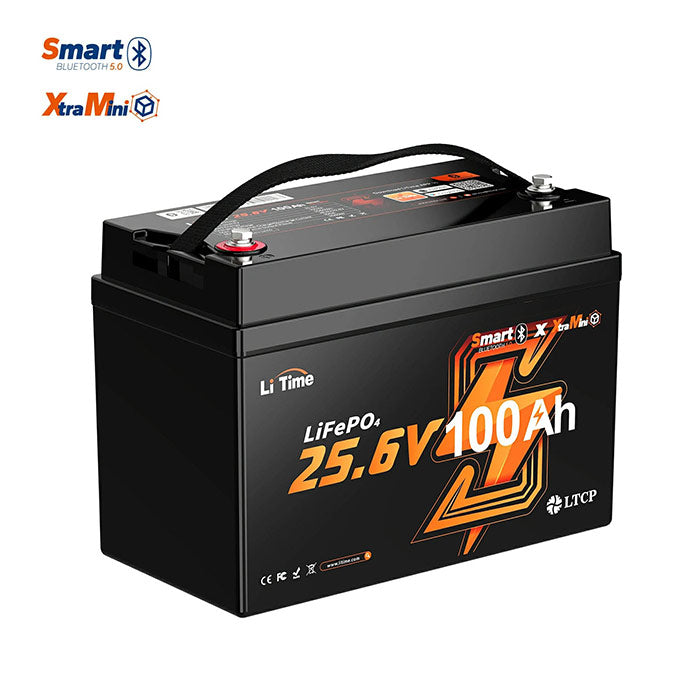

LiTime 24V 100Ah Group 31 Bluetooth Lithium Battery

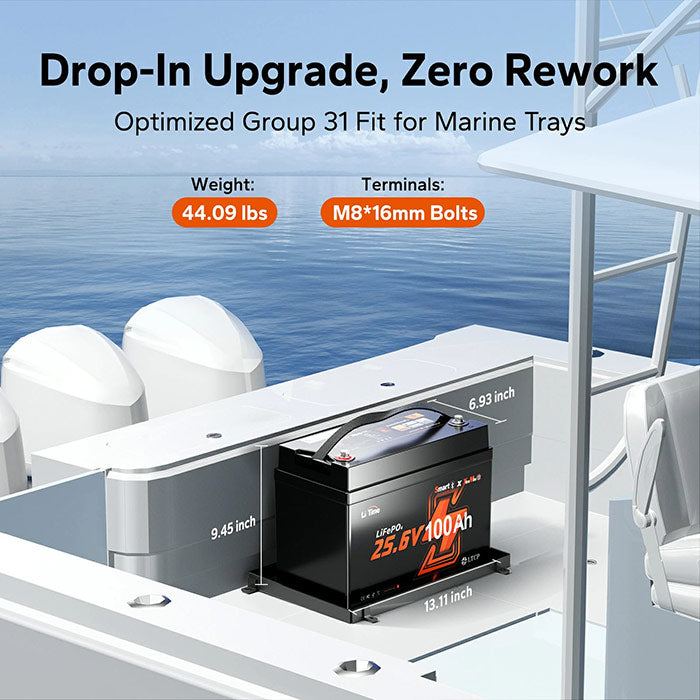

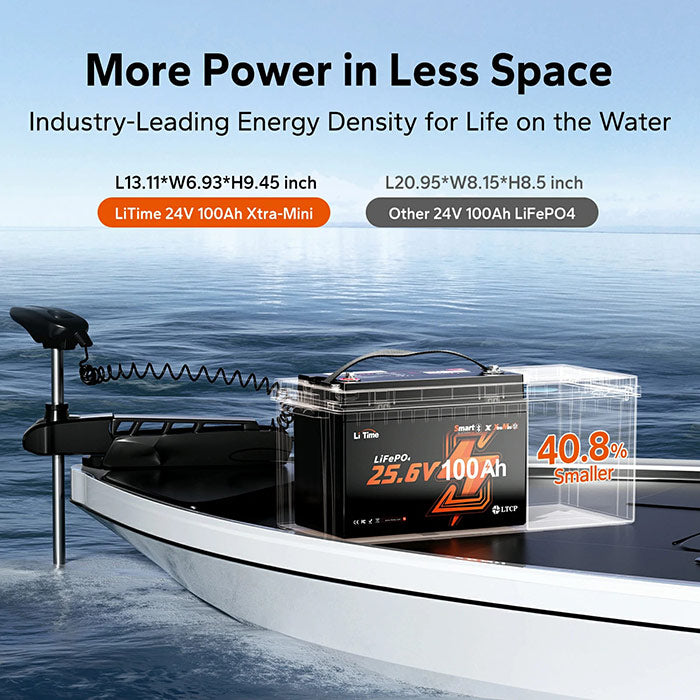

The LiTime 24V 100Ah Group 31 Bluetooth Lithium Battery is a 25.6V LiFePO4 battery rated for 2560Wh of energy, built for 70 to 100 lb thrust trolling motors. Housed in a Group 31 ABS case measuring 13.11" L x 6.93" W x 9.45" H and weighing 44.09 lbs (20 kg), it puts 24V of power into a single battery, eliminating the need to wire two 12V lead-acid batteries in series.

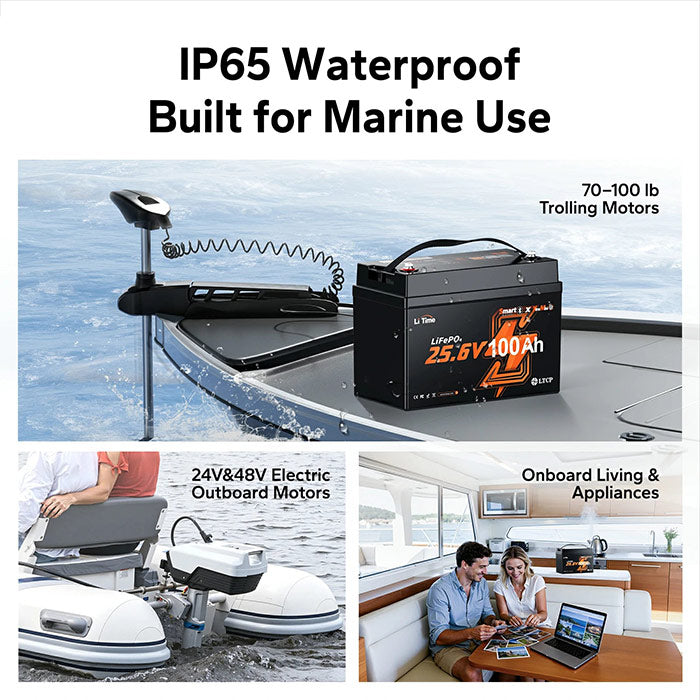

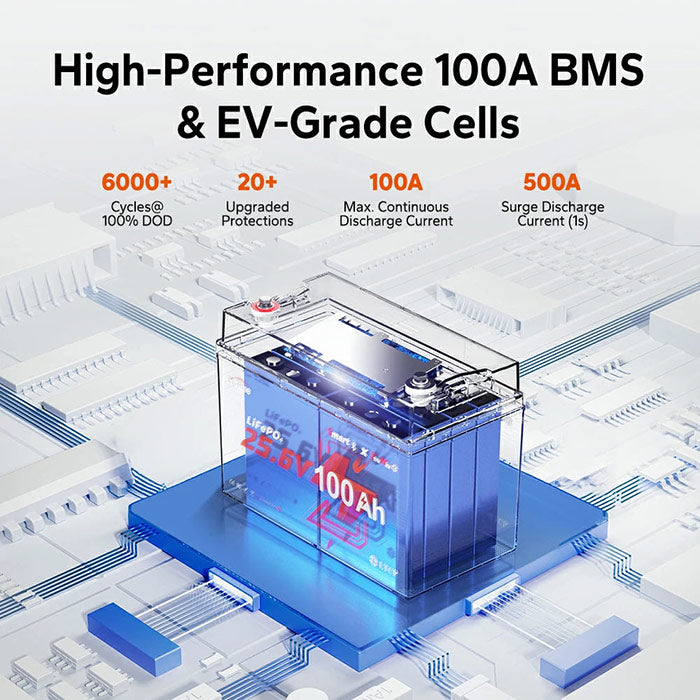

The BMS supports 100A of continuous discharge and charge, with surge capacity up to 500A for 1 second, and includes over 20 protections. The IP65-rated housing handles waterproofing and dust resistance, and the battery meets ABYC E-13 marine wiring standards, carrying CE, RoHS, UN38.3 and FCC ID certification. Low-temperature protection stops charging below 32°F (0°C) and discharging below -4°F (-20°C), resuming above 41°F (5°C).
Bluetooth 5.0 connects to the LiTime app for live monitoring of state of charge, voltage, current, and battery status. It's rated for 6,000 cycles at 100% depth of discharge, backed by a 5-year warranty, and can be wired up to a 4P2S configuration for larger battery banks.
LiTime 24V 100Ah Battery Specifications
- Chemistry:
- LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage:
- 25.6V
- Capacity:
- 100Ah / 2560Wh
- Weight:
- 44.09 lbs (20 kg)
- Dimensions:
- 13.11" L x 6.93" W x 9.45" H (Group 31)
- Max Continuous Discharge:
- 100A
- Max Surge Discharge:
- 500A (1 second)
- Max Continuous Charge:
- 100A
- Cycle Life:
- 6,000 cycles at 100% DOD
- Ingress Protection:
- IP65 (waterproof and dustproof)
- Certifications:
- CE, RoHS, UN38.3, FCC ID; meets ABYC E-13 marine wiring standards
- Connectivity:
- Bluetooth 5.0, LiTime app
- Recommended Trolling Motor Thrust:
- 70 to 100 lb
- Warranty:
- 5-Year
LiTime 24V 100Ah Group 31 Battery Features
-
Replaces Two 12V Batteries: Built-in 24V configuration eliminates wiring two lead-acid batteries in series.
-

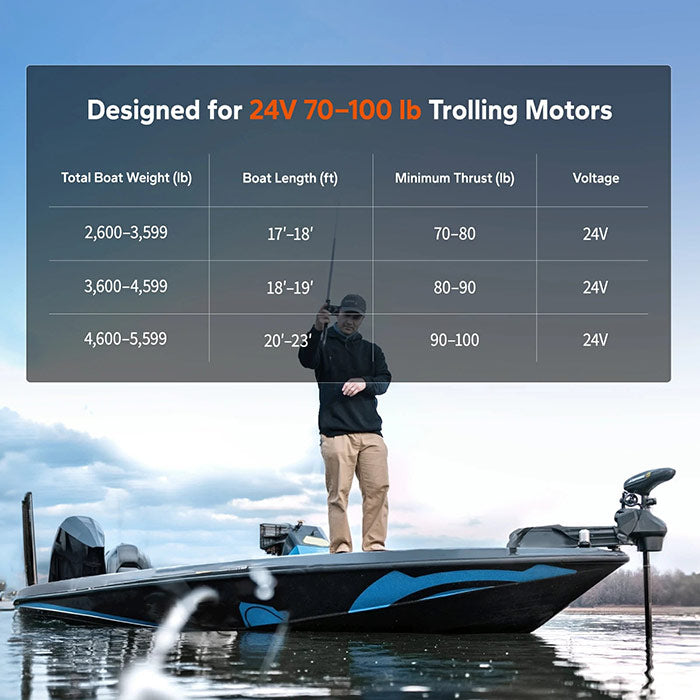

Built for 70-100 lb Thrust Motors: Sized for mid to large trolling motor setups.
-
ABYC E-13 Compliant: Meets marine wiring standards, with CE, RoHS, UN38.3 and FCC ID certification.
-
100A Continuous, 500A Surge: Steady power with headroom for demanding conditions.
LiTime 24V 100Ah Battery FAQs
What is the LiTime 24V 100Ah Group 31 Battery built for?
This is a 25.6V, 2560Wh LiFePO4 battery sized for 70 to 100 lb thrust trolling motors. Because it's already built as a 24V battery, it replaces two 12V lead-acid batteries that would otherwise need to be wired together in series.
How much current does the LiTime 24V 100Ah Battery support?
The BMS is rated for 100A of continuous discharge and charge, with a surge rating of 500A for 1 second. Size your motor and wiring to the 100A continuous figure, since the surge rating is only a brief spike, not sustained output.
Is the LiTime 24V 100Ah Battery certified for marine use?
It carries CE, RoHS, UN38.3 and FCC ID certification and meets ABYC E-13 marine wiring standards. It's also IP65 rated for water and dust resistance.
How many charge cycles does the LiTime 24V 100Ah Battery last?
LiTime rates this battery for 6,000 cycles at 100% depth of discharge. That figure is specific to full-depth cycling; LiTime's page for this SKU does not publish separate figures at partial depth of discharge the way some of its other batteries do.
What warranty covers the LiTime 24V 100Ah Battery?
LiTime backs this battery with a 5-year warranty. LiTime's product page does not publish the full written terms, coverage exclusions, or claims process, so we can't state those specifics here. Contact us and we'll get you the exact terms before you buy if that's a deciding factor.
