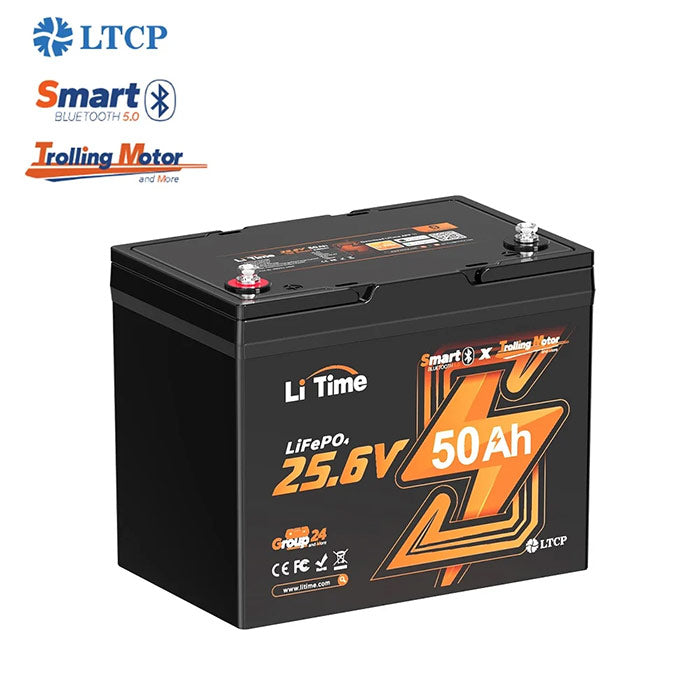

LiTime 24V 50Ah Group 24 Bluetooth Lithium Battery
The LiTime 24V 50Ah Group 24 Bluetooth Lithium Battery is a 25.6V LiFePO4 battery rated for 1280Wh of energy, built for 70 to 100 lb thrust trolling motors. It's housed in a Group 24 case measuring 10.24" L x 6.61" W x 8.31" H and weighs 21.15 lbs (9.6 kg).

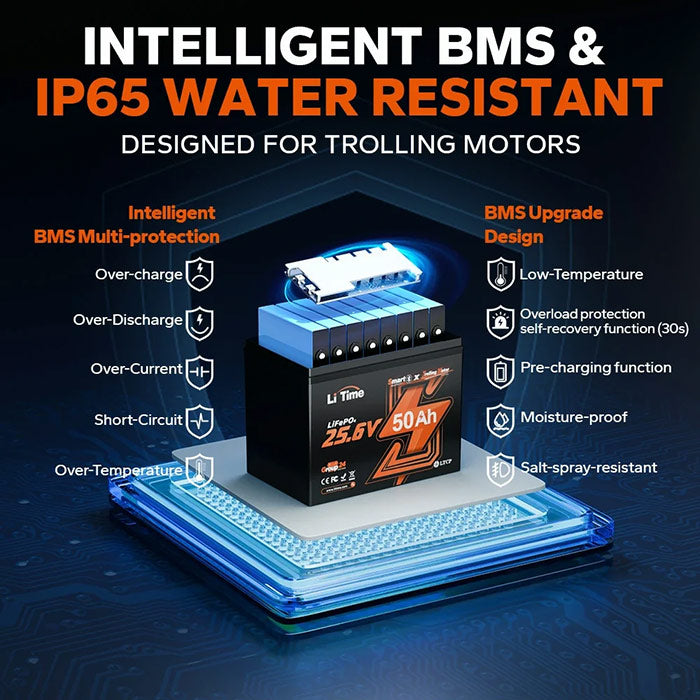

The 50A BMS supports 50A of continuous discharge and charge, with a surge rating of 250A for 1 second, and includes over 20 protections. The IP65-rated housing handles waterproofing and dust resistance, and low-temperature protection stops charging below 32°F (0°C) and discharging below -4°F (-20°C), resuming above 41°F (5°C), which keeps the battery usable for ice fishing trips.
Bluetooth 5.0 connects to the LiTime app for monitoring of state of charge, voltage, current, temperature, and battery status. It's rated for 4,000 cycles at 100% depth of discharge and 15,000 at 60% DOD, backed by a 5-year warranty, and can be wired to a 4P2S configuration for up to 10.24 kWh of total energy.
LiTime 24V 50Ah Group 24 Specifications
- Chemistry:
- LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage:
- 25.6V
- Capacity:
- 50Ah / 1280Wh
- Weight:
- 21.15 lbs (9.6 kg)
- Dimensions:

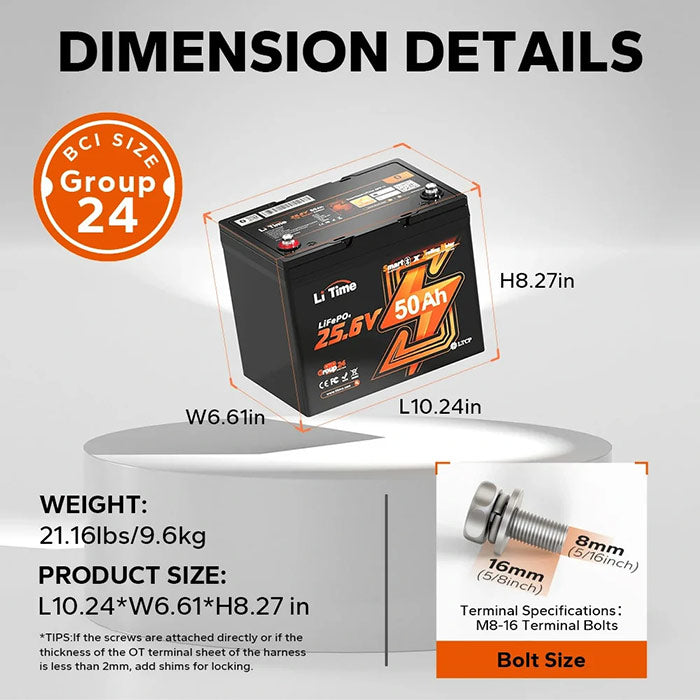

- 10.24" L x 6.61" W x 8.31" H (Group 24)
- Max Continuous Discharge:
- 50A
- Max Surge Discharge:
- 250A (1 second)
- Max Continuous Charge:
- 50A
- Cycle Life:

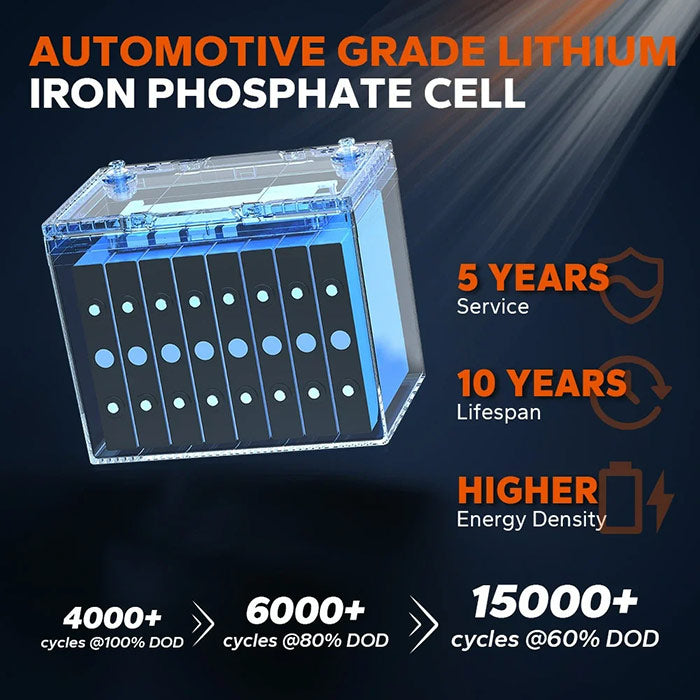

- 4,000 cycles at 100% DOD, 15,000 at 60% DOD
- Ingress Protection:
- IP65 (waterproof and dustproof)
- Connectivity:
- Bluetooth 5.0, LiTime app
- Recommended Trolling Motor Thrust:
- 70 to 100 lb
- Warranty:
- 5-Year
LiTime 24V 50Ah Group 24 Battery Features
-
Built for 70-100 lb Thrust Motors: Matched to mid-size trolling motor setups.
-
Low-Temp Cutoff for Ice Fishing: Automatically stops discharge below -4°F and charging below 32°F, resuming once it warms above 41°F.
-
Group 24 Footprint: Drops into standard Group 24 battery trays.
-
Expandable to 4P2S: Wire up to four batteries for up to 10.24 kWh of total energy.
LiTime 24V 50Ah Group 24 FAQs
What is the LiTime 24V 50Ah Group 24 Battery built for?
This is a 25.6V, 1280Wh LiFePO4 battery sized for 70 to 100 lb thrust trolling motors, built into a standard Group 24 case.
How much current can the LiTime 24V 50Ah Battery deliver?
The BMS is rated for 50A of continuous discharge and charge, with a surge rating of 250A for 1 second. Size your motor and wiring to the 50A continuous rating rather than the surge figure.
Can the LiTime 24V 50Ah Battery handle ice fishing conditions?
Discharging automatically stops below -4°F (-20°C) and charging stops below 32°F (0°C), both resuming once the battery warms above 41°F (5°C). This model doesn't include a self-heating function, so keep it warmed above freezing before charging on cold days.
How many charge cycles does the LiTime 24V 50Ah Battery last?
LiTime rates it for 4,000 cycles at 100% depth of discharge and 15,000 cycles at 60% DOD. LiTime's page for this SKU does not publish a separate 80% DOD figure the way some of its other batteries do.
What warranty covers the LiTime 24V 50Ah Battery?
LiTime backs this battery with a 5-year warranty. LiTime's product page does not publish the full written terms, coverage exclusions, or claims process, so we can't state those specifics here. Contact us and we'll get you the exact terms before you buy if that's a deciding factor.
