Lowrance Elite FS 7 All-Season Pack

Lowrance Elite FS 7 All-Season Pack

$1,049.00 - $1,049.00
$1,049.00
$1,049.00 - $1,049.00
$1,049.00

✓ Authorized Lowrance Dealer
✓ Lowest Price Guaranteed
✓ Free & Fast Shipping: In Stock & Ready to Ship
✓ Questions? Call a Lowrance Expert: 1-844-987-5777

Lowrance Elite FS 7 All Season Pack

Model: 000-15885-001

  • ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
  • Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
  • High Resolution Multi-touch screen
  • Preloaded with C-MAP Contour + charts (AMER,APAC)
  • NMEA 2000®: Support and control NMEA 2000® devices
  • Halo Radar: Drive Lowrance radar domes directly
  • Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts

Specifications

Environmental
Operating temperature range -15°C to +55°C (5°F to 131°F)
Storage temperature -20°C to +60°C (4°F to 140°F)
Waterproof rating IPX6 and IPX7
Electrical
Supply voltage 12 V DC (10 - 17 V DC min - max)
Recommended fuse rating 3 A
Power consumption (maximum) 28 W (2 A at 13.8 V DC)
Display
Resolution 800 x 480 pixels
Viewing angles in degrees 50° top, 60° bottom, 70° left and right
Brightness > 1200 nits
Touch screen Multitouch
Physical
Weight (display only) 0.9 kg (1.9 lbs.)
Compass Safe Distance 0.5 m (1.6 ft.)
Interface/Connectivity
NMEA 2000® 1 port (Micro-C connector)
Data card reader 1x slot (microSD, SDXC)
Ethernet 1 port, (5-pin Ethernet connector, 100Base-T)
Sonar 1 port (9-pin connector)
WiFI Internal 802.11b/g/n : No wireless networking between units
Bluetooth® 4.0 with support for Bluetooth® Classic
GPS 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

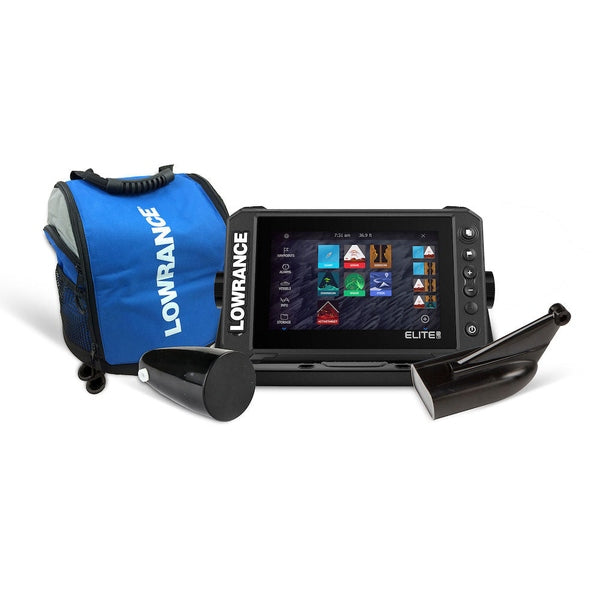

What's in the Box:

  • Elite FS 7 No Transducer Display
  • Carrying Bag
  • HDI Skimmer Transducer
  • Suction Cup Mounting Kit
  • Ice Transducer
  • Battery and Charger
