Lowrance Ghost Freshwater Trolling Motor
The Lowrance Ghost Trolling Motor is a high-performance, brushless trolling motor designed for serious anglers who demand power, efficiency, and quiet operation. Built with advanced technology, the Ghost delivers nearly silent propulsion, ensuring you don’t spook fish while navigating the water. Its brushless motor provides more thrust (up to 120 lbs on a 36V system), greater efficiency, and longer battery life compared to traditional trolling motors.
The Ghost features integrated Lowrance sonar compatibility, supporting Lowrance CHIRP, DownScan, and Active Imaging™ sonar for seamless fish-finding capabilities. Its fly-by-wire steering offers ultra-responsive and smooth control, mimicking the feel of a traditional cable-steer motor while eliminating mechanical wear.
For precision fishing, the Anchor Mode holds your position exactly where you want it, even in wind or current, allowing for hands-free operation. The configurable foot pedal offers customizable layout options, ensuring a more intuitive and comfortable experience tailored to your fishing style.
Built with durability in mind, the Ghost has a rugged composite shaft backed by a lifetime warranty, ensuring long-term reliability. It is also easy to integrate with Lowrance HDS LIVE, Elite FS, and HDS PRO displays, providing full system connectivity and control from your fishfinder.

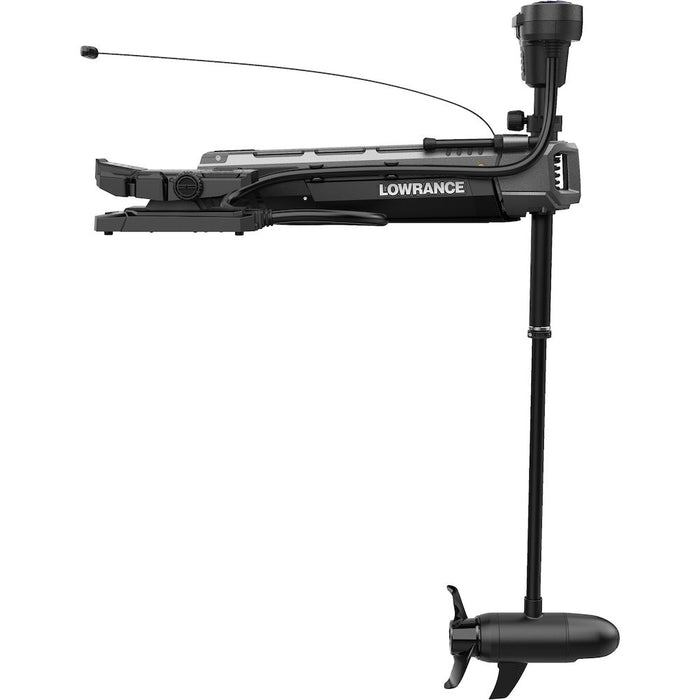

![Lowrance Ghost Freshwater Trolling Motor]()
Lowrance Ghost Specs
-
Shaft Length: 47" or 52"
-
Usage: Freshwater Use Only
-
Mounting Location: Bow
-
Mount Style: Scissor Style Mount
-
360 Degree Breakaway: Yes
-
Max Thrust: 120 Lbs At 36v; 97 Lbs At 24v
-
Voltage: 24v Or 36v
-
Steering: Fly-By-Wire Steering
-
Lift-Assist: Dual Action Gas Spring
-
Compass: External And Included
-
Gps: Internal
-
Included Sonar: Hdi Sonar Nosecone
-
Frequencies Supported: Medium/High Chirp Sonar, 455/800 Khz
-
User Upgradable Sonar: Active Imaging 3-In-1
-
Number Of Pins: Mini 9-Pin To 9-Pin Lowrance Adaptor Included
-
Foot Pedal Dimensions: 11 ¾” L, 7 ¼” W, 4 ½”
-
Included: N2K-T-RD Network T-Connector, Sonar Adapter Cable 9P Mini to 9P, Trolling Motor Compass-1 (TMC-1), HDI Nosecone Transducer for Ghost Trolling Motor
Lowrance Ghost Features
-
Reliability: We put our 60-plus years of innovation and marine electronics expertise to work in designing the Lowrance Ghost freshwater trolling motor. After years of researching when and why trolling motors fail, we went to work to exceed those standards, building Ghost in-house, from scratch. Four years and 10,000 testing hours later, we have delivered the quietest, most reliable, and most powerful trolling motor on the market.
-
Silent Operation: So silent, you’ll wonder if it’s running, Ghost allows you to move in closer than ever before with its ultra-quiet brushless motor. Fish will never hear you coming.
-
Incredible Performance: Zoom from spot to spot or zip across the cove with up to 25-percent more thrust than competing models. Ghost’s brushless motor also delivers 60-percent better run-time efficiency, so you can enjoy the best top-end speed and acceleration without sacrificing battery life. Stay out later and run it harder – you will fish longer with Ghost.
-
360-Degree Breakaway Mount: The 360-degree breakaway mount is designed to absorb impact, allowing the shaft to deflect away from obstructions and then reposition itself after impact. An integrated stabilizer bar reduces bouncing when running in rough water.
-
Total Integration: Steer your boat, adjust your speed, set up route navigation or anchor at your current location with full touchscreen control from HDS LIVE, HDS Carbon, Elite FS and Elite Ti² displays. Our Pro Team anglers asked us to build a trolling motor with full integration capability, including a foot pedal that could serve as an extension of the display’s user interface. We listened – delivering an all-everything pedal with easily accessible Anchor and Heading Mode quick access keys, plus programmable shortcut keys that can be used for saving waypoints and controlling Power-Pole shallow water anchors.
-
Fly-By-Wire Steering: Instant and smooth fly-by-wire steering control gives Ghost the feel of a traditional cable-steer motor, but without the physical cables that wear out over time.
-
Own Your Spot: Ghost’s powerful and precise anchoring lets you anchor your boat on a waypoint, at your current location or anywhere on the map – regardless of wind conditions – so you can spend more time fishing and less time maintaining your position. With a simple press of your foot, you can lower or raise your Power-Pole® shallow-water anchor or anchor at your current location using the quick access keys built into the Ghost foot pedal.
-
Flexible Installation: The Ghost trolling motor is designed to work with either 24- or 36-Volt systems, making it compatible with any set-up and easier to implement future upgrades to batteries and chargers.
-
Plug-and-Play Lowrance Sonar: Ghost is packaged with an HDI nosecone transducer, giving you the high-level performance of Lowrance CHIRP sonar and DownScan Imaging™ right out of the box. Anglers who want to step up to the extreme, high-resolution views beneath and to the sides of the boat can add an optional Active Imaging™ 3-in-1 nosecone with Lowrance CHIRP, SideScan and DownScan Imaging.
-
Interference Free: Ghost’s brushless motor not only runs quieter than common brushed motors, but emits zero electromagnetic interference, ensuring the clearest, interference-free sonar views on your fish finder display.
-

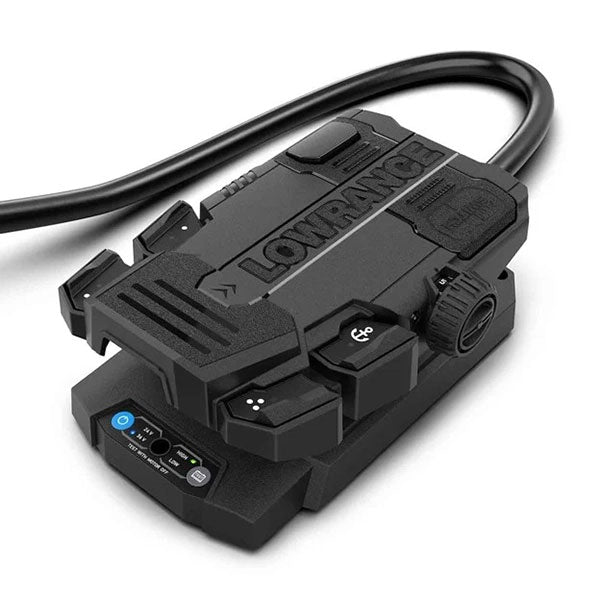

Configurable Foot-Pedal: Configure the Ghost pedal to suit your preferences via programmable shortcut buttons and a Flip Switch that allows the trolling motor to be driven from either side of the pedal. The foot pedal features a battery-level indicator, Anchor and Heading mode quick access keys with LED lights and an indicator beep to provide feedback when a mode is engaged. You can program the shortcut keys to quickly drop a waypoint or lower/raise your Power-Pole shallow-water anchor.
-

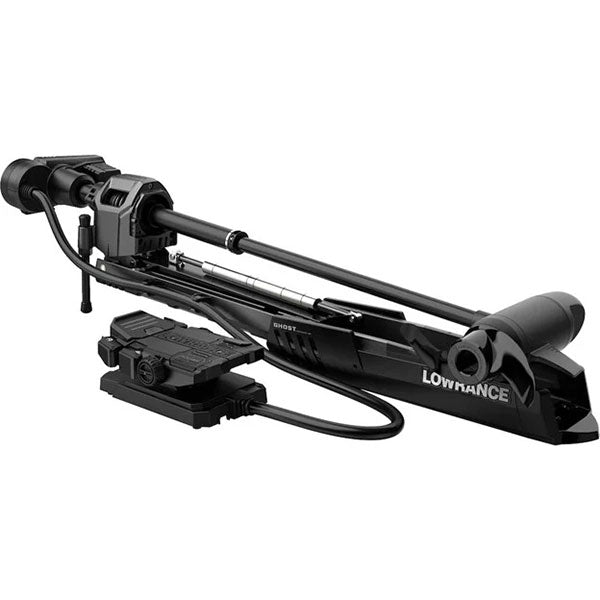

Easy to stow and Go: Ghost has a dual-action gas spring that makes stowing and deploying the motor easier and quieter. Plus, there is no longer a need to align the lower unit before stowing the motor as Ghost auto aligns itself when stowing to lay flat and secure on the mount.
