Newport NK300 HD Electric Kayak Outboard Motor
The NK HD Series represents the next generation of Newport’s flagship kayak motors. Built around a heavy duty durability standard, the NK300 HD combines rugged composite materials, updated architecture, precision bearings and overbuilt communication cable plugs - all as standard equipment. Designed specifically for hardcore kayak anglers, the NK300 HD delivers 1300W of reliable brushless direct drive power with unmatched speed and thrust. Tournament angler trusted, and proven on the water, this motor was built to explore where others won’t.

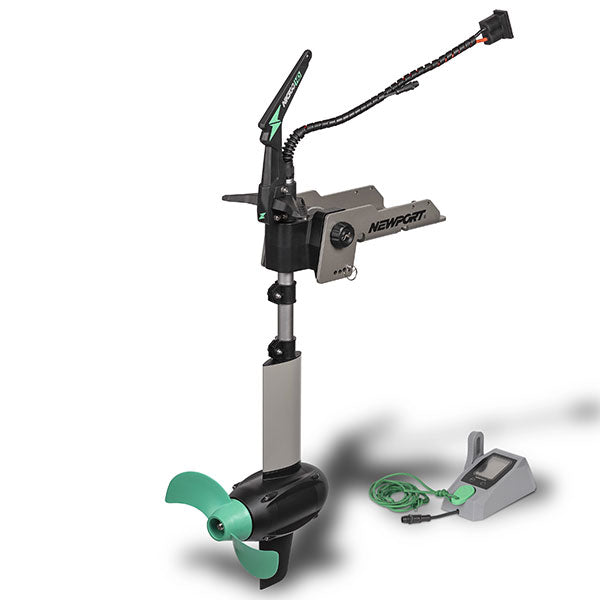

Included: NK300 HD motor, NK HD Steering Triangle, NK HD Retract Arm w/ Stainless Carabiner + Ronstan micro block, NK HD Communication Cable with oversized M12 connectors, NK HD Digital Speed Controller w/ Display, Four Bolt Aluminum Motor Mounting bracket, Height Adjustment Clamp, Reverse Control Line and, Handle, Motor Lift Control Line and Handle, Emergency Stop Key, (2) Carabiner and pulley sets for rigging options, Additional nylon cord, Coated Stainless Steering, Cable Kit (may not be compatible w/ every brand of kayak), Installation Kit, Hardware installation kit with required tools. BATTERY NOT INCLUDED
Newport NK300 HD Specs
-
Peak Power: 1,300W 3HP equivalent
-
Propulsion Type: Outboard Kayak Motor
-
Input Voltage: 36V DC
-
Power: 110lb Thrust (3 HP Equivalent)
-
Shaft Length: 21.7”
-
Weight: 25.5lbs
-
Battery Meter: Digital Battery Percentage & Voltage Display
-

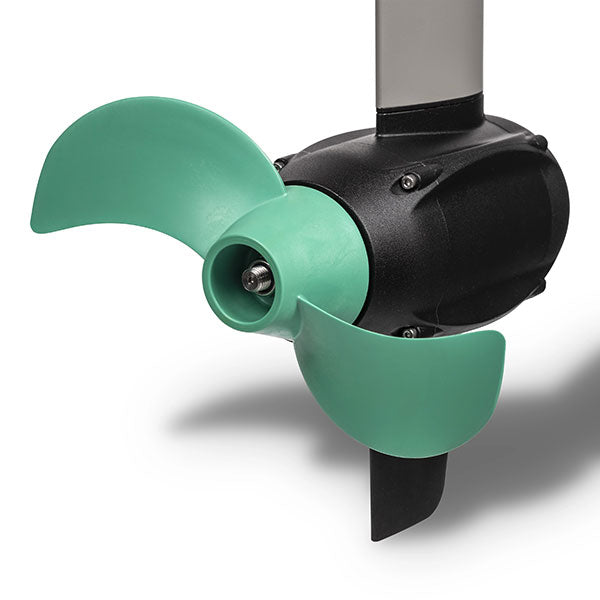

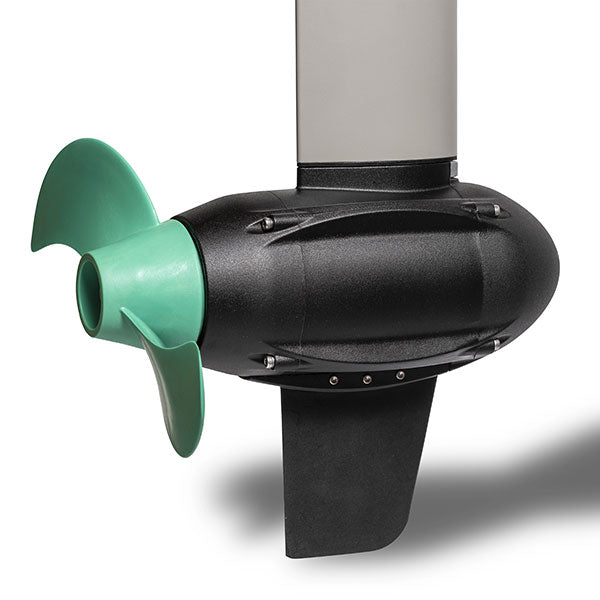

Stock Propeller: 2 Blade (NK300)
-
Motor: Brushless
-
Max Amp Draw: 37 AMPs
-
Battery Requirements: One 36V LiFeP04
-
Mount: 4 Bolt Pattern
Newport NK300 HD Features
-
Low Profile Lifting: Attachments Included
-
Flexible Battery Options: Choose the setup that fits your needs and budget
-
Lifting Arm Geometry: Built for strength & motor alignment when lifting
-
Lightweight & Portable: Durable polymer composite construction
-

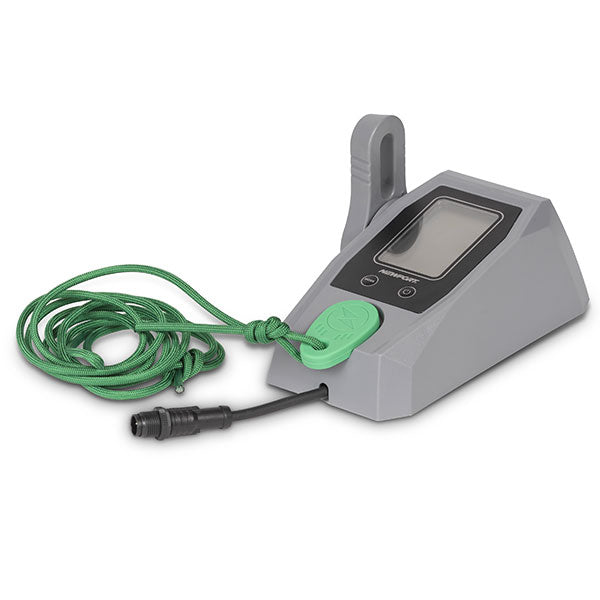

Digital Throttle & LCD Screen: Real-time speed, power, and battery monitoring
-
HD Steering Triangle: Stronger steering control and long-term durability
-
HP Equivalent: Serious power, zero emissions
-
Magnetic Safety: For emergency shutoff
-
Fresh & Saltwater Compatible: Engineered for every environment
-
NK HD Connector: More secure connection built for long-term use
-

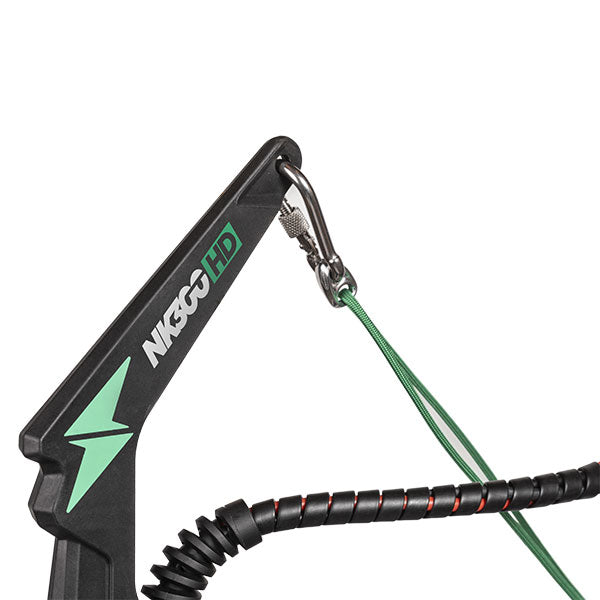

HD Retract Arm: Smoother lift and stow with less strain during use
-
Precision Bearings: Quieter operation and extended service life
Frequently Asked Questions About the Newport NK300 HD
Who is the Newport NK300 HD best suited for?
The Newport NK300 HD suits kayak anglers who want the most powerful motor in Newport's NK HD line and are prepared to install a compatible 36V battery system and a permanent four-bolt mount. It delivers 1,300 watts, 3HP equivalent and 110 pounds of thrust from a brushless direct-drive motor, with heavy-duty steering and retract hardware and M12 connectors. That higher output may be useful where current or wind increases propulsion demand; actual range still depends on battery, hull, load, throttle and conditions. For less weight, compare the Newport NK180 HD.
How does the NK300 HD compare with the NK180 HD?
The Newport NK300 HD is the bigger motor: 1,300 watts, 3HP equivalent and 110 pounds of thrust on a 36V system, against 600 watts, 1.8HP equivalent and 65 pounds of thrust on 24V for the Newport NK180 HD. Weight is the other difference — 25.5 pounds against 14.3 — and the NK180 HD draws 25 amps where this one draws 37. Both share the 21.7-inch shaft, four-bolt mount and HD hardware, and neither includes a battery. Different voltages mean no pack serves both.
Is the NK300 HD a kayak outboard or a conventional trolling motor?
The Newport NK300 HD is a kayak outboard, not a conventional tiller trolling motor. It bolts through a four-bolt aluminum bracket rather than clamping to a transom, steers by cable from a steering triangle worked by hand lines instead of a tiller, and lifts out of the water on a retract arm and control line. Speed comes from a digital controller with a display. It runs on 36V where a small trolling motor uses one 12V battery — a rigging project, not a clamp-on job.
What battery does the NK300 HD require, and is it included?
The Newport NK300 HD needs one 36V battery of at least 30Ah, and no battery is included. The current owner's manual lists a 36V deep-cycle marine battery, a 36V LFP lithium battery or a 36V lithium cobalt oxide battery as the compatible options; the product listing points to LiFePO4. Maximum draw is 37 amps. A single 12V battery cannot run this motor, and 36V is not interchangeable with 12V. Size cabling and any protection from the NK300 owner's manual for your exact battery, not from general marine practice, and mind where the pack sits in a kayak — it affects both trim and capacity.
What do the NK300 HD's 1,300-watt, 3HP-equivalent, and thrust ratings mean?
For the Newport NK300 HD, 1,300 watts is the electrical power rating, "3HP equivalent" is a comparison to a small gas outboard, and 110 pounds is the static thrust the propeller can produce. These measure different things and do not convert into one another. Thrust is a static force in pounds while horsepower is work per second, so read the HP-equivalent figure as a class comparison published for this model, not a conversion. None of the three predicts speed; hull, load and conditions decide that.
What affects the NK300 HD's speed, range, and runtime?
The Newport NK300 HD's published figures — up to 6.5 MPH, up to 66 miles of range and up to 30 hours of runtime — are conditional maximums rather than results to plan a day around. The long range and runtime numbers belong to economical settings, not to full throttle. They shift with battery capacity and condition, hull design, total weight aboard including the battery, how deep the motor is set, throttle position, and wind, current, waves and water conditions. Newport does not publish the kayak, load or test conditions behind the figures, so treat them as estimates. Plan your return leg on charge remaining, not on a published maximum.
Will the NK300 HD fit every fishing kayak?

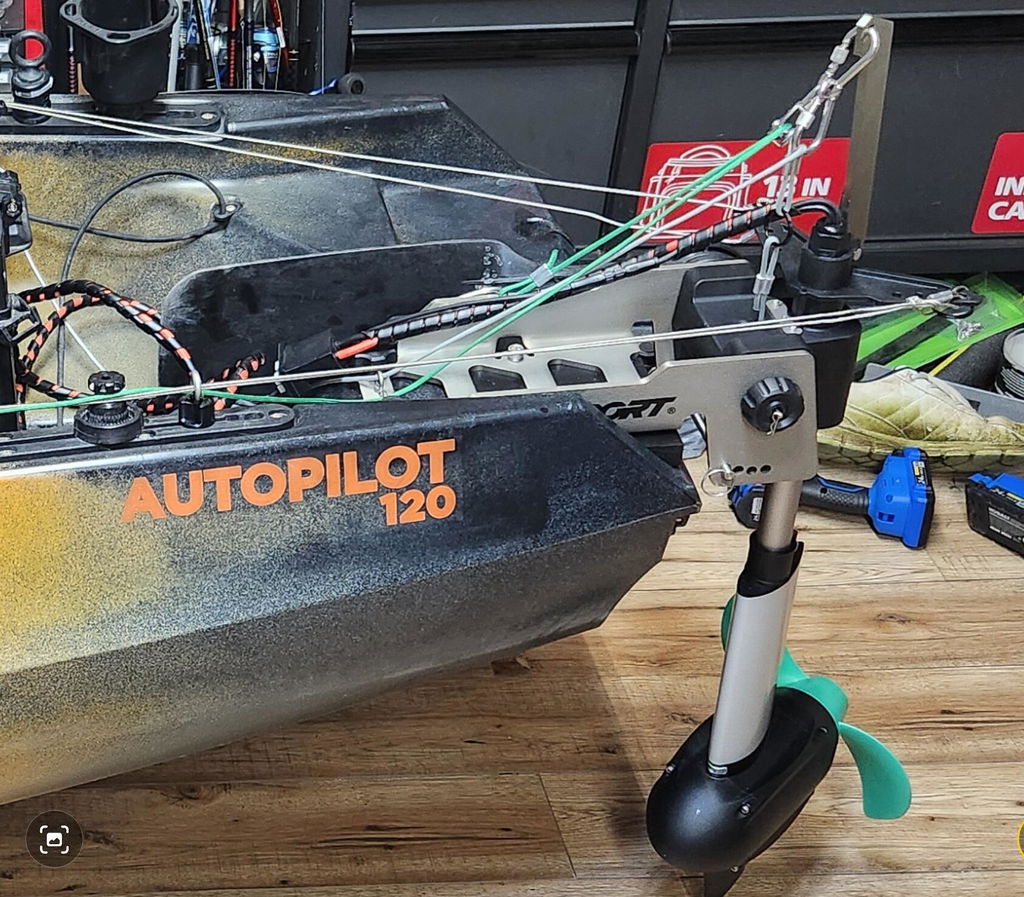

No — the Newport NK300 HD will not fit every fishing kayak, and the supplied coated stainless steering cable kit may not be compatible with every brand of kayak. Installation needs a flat, solid area that will take a four-bolt aluminum bracket, enough depth for the 21.7-inch shaft to keep the propeller submerged, a clear route for the steering cables and the lift and reverse control lines, clearance for the motor to swing up and stow, and somewhere secure for a 36V pack. Count the 25.5-pound motor plus battery against your kayak's capacity. Check your kayak maker's motor guidance, and talk to us before ordering if you are unsure.
How do the NK300 HD steering, lifting, mounting, and depth-adjustment systems work?

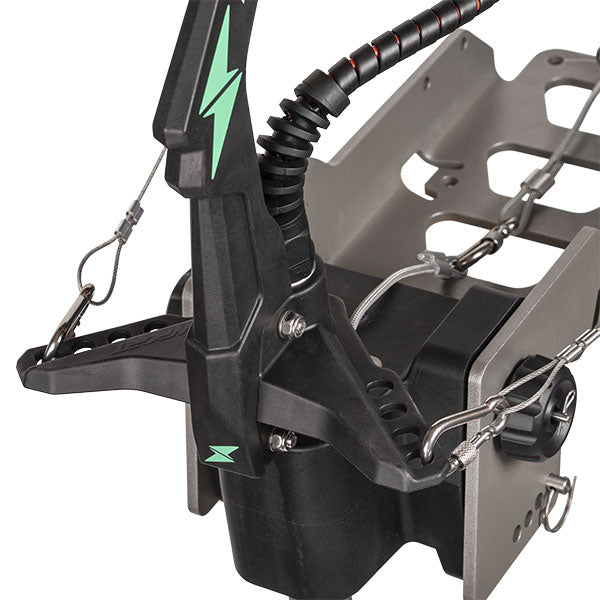

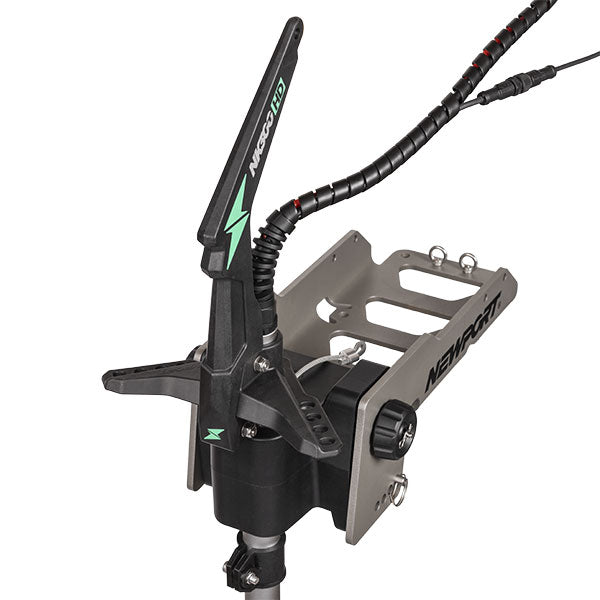

The Newport NK300 HD mounts on a four-bolt aluminum bracket, steers by cable from an HD steering triangle, lifts on an HD retract arm with a control line, and sets depth with a height adjustment clamp. Pulling the steering cords on the triangle turns the motor left or right. The lift line and handle raise it clear of the water for shallows, launching and stowing, and the reverse control line and handle work reverse. Loosen the height adjustment clamp to slide the shaft, and set it so the propeller stays at least two inches below the surface. Two carabiner and pulley sets plus extra nylon cord are supplied for alternative rigging routes.
What is included with the NK300 HD, and how should it be cared for after use?
The Newport NK300 HD comes with the motor, HD steering triangle, HD retract arm with stainless carabiner and Ronstan micro block, HD communication cable with oversized M12 connectors, digital speed controller with display, four-bolt aluminum mounting bracket, height adjustment clamp, reverse and lift control lines and handles, emergency stop key, two carabiner and pulley sets, extra nylon cord, the coated stainless steering cable kit, and the installation and hardware kits with the required tools. No battery is included. It is rated for fresh and salt water. Rinse the motor thoroughly with fresh water after saltwater use, keep the speed controller dry, clear line and weed from the propeller, and store it clean and completely dry.
What warranty coverage comes with the NK300 HD?
The Newport NK300 HD carries a two-year limited warranty against defects in materials and workmanship, restricted to the original owner and non-transferable. A claim needs proof of purchase within the coverage window plus photos or video of the damage, so keep the receipt and note the serial number before the motor goes on the water. No motor registration is required and no registration deadline applies. Commercial use of any kind is excluded, as are neglect, abuse, lack of maintenance, accident, improper use or assembly, and failed repair attempts. The buyer pays transport charges on a claim. See the Newport warranty page for full terms.
