Epropulsion kLite 750 Kayak Electric Motor with Battery
The ePropulsion kLite 750 is a purpose-built electric outboard motor engineered specifically for recreational and fishing kayaks. Unlike a trolling motor adapted for kayak use, the kLite 750 integrates its 378Wh lithium-ion battery directly into the rudder-shaped motor housing, eliminating the separate battery box, wiring runs, and deck clutter typical of bolt-on systems. The complete motor unit weighs 14.3 lbs (6.5 kg), with the motor mount adding 5.1 lbs (2.3 kg) for a total system weight of roughly 19.4 lbs (8.8 kg).
The kLite 750 delivers 500 watts of continuous power in Go Mode for standard cruising, with a temporary boost to 750 watts in Boost Mode when extra acceleration is needed to punch through current or wind, available above a 50% battery state of charge and within the battery's normal temperature range. Fish Mode provides refined low-speed throttle control for precise maneuvering around structure, with a default maximum of 200 watts that can be adjusted from the display. In manufacturer testing on a Crescent Kayaks Lite Tackle 2, Go Mode produced approximately 5.5 mph, with Boost Mode reaching approximately 6 mph; actual speed varies with hull design, load, wind, and current.
Built for shallow-water access, the kLite 750 operates in as little as 7 inches (18 cm) of water and can be adjusted deeper for open-water conditions via a 10.9-inch (276 mm) shaft adjustment range. Its rudder-shaped housing maintains steering control even when the throttle is idle, and a spring-tensioned reverse system delivers up to 300 watts of reverse thrust while allowing the propeller to kick up safely if it contacts an obstruction. The motor mounts to standard kayak accessory track systems, with a separate sun-shaded display and low-profile throttle that can be positioned along the track to suit the kayak's layout.
What's in the box: Motor + integrated battery, eLite Charger (EL-C001-00), Monitor/display, Throttle, 3m EP-CAN cable, 1.5m EP-CAN cable, One Motion motor lift, cam cleat, motor mount, magnetic kill switch + spare magnet
Epropulsion kLite 750 Specs
- Nominal Power:
- 500 W
- Maximum Power (in Boost Mode):
- 750 W
- Battery:
- Integrated 378 Wh 25.2 Vdc Lithium-ion
- Input Voltage Range:
- 19.3 - 29.4 Vdc
- Battery Life:
- 800 cycles at 80% SoH
- Charger:
- 100 to 240V AC charger included, 12V charger optional
- Charge Time:
- Approximately 4 hours from empty
- IP Rating:
- IP67 (motor and battery), freshwater and saltwater capable
- Cooling:
- Natural cooling
- Rated RPM:
- 1450 - 1800
- Operating Temperature:
- -5 to 55°C
- Storage Temperature:
- -20 to 45°C
- Trim Angles:
- 0°, 8°, 16°, 24°, 32°
- Tilt Angle:
- 70°
- Steering Angle Range:
- ±70°
- Dimensions (L x W x H):
- 12.1 x 11.8 x 35.2 in | 309 x 300 x 895 mm (without bracket clamp); 23.6 x 11.8 x 35.2 in | 600 x 300 x 895 mm (with bracket clamp)
- Motor Weight:
- 14.3 lbs | 6.5 kg
- Motor Mount Weight:
- 5.1 lbs | 2.3 kg
- Shaft Length Adjustment Range:
- 10.9 in (Min. 3.9 in | Max. 14.8 in); 276 mm (Min. 98.5 mm | Max. 375 mm)
Epropulsion kLite 750 Performance and Range
| Power |
Speed (approx.) |
Runtime (approx.) |
Range (approx.) |
| 19W |
~2 mph |
~19 hr 54 min |
~40 miles |
| 133W |
~4 mph |
~2 hr 48 min |
~11 miles |
| 500W (Go Mode) |
~5.5 mph |
~48 min |
~4 miles |
| 750W (Boost Mode — temporary, requires ≥50% battery state of charge and normal battery temperature) |
~6 mph |
~15 min |
~1.5 miles |
Manufacturer test data collected on a Crescent Kayaks Lite Tackle 2 under controlled conditions. Actual speed, runtime, and range will vary based on hull design, paddler weight and gear load, wind, current, water temperature, propeller depth, and battery state. The 750W figure represents temporary high-power operation, not sustained cruising.
Epropulsion kLite 750 Features
-
Integrated Battery Design: A self-contained 378Wh, 25.2Vdc lithium-ion battery is built directly into the rudder-shaped motor housing, eliminating separate battery boxes and reducing wiring and deck clutter.
-
Three Throttle Modes: Fish Mode delivers refined low-speed control for precision work around structure with a 200W default maximum that can be adjusted from the display, Go Mode provides 500W of continuous power for standard cruising, and Boost Mode unlocks a temporary 750W boost above a 50% battery state of charge.
-
Shallow Water Capability: Operates in as little as 7 inches (18 cm) of water, opening access to shallow flats, narrow backwaters, and low-tide zones.
-
Rudder-Style Steering: The wide, tapered housing steers the kayak even when the throttle is idle, with a ±70° steering angle range. Foot steering is available through the optional Foot Control Steering Kit.
-
Spring-Tensioned Reverse: Delivers up to 300W of reverse power through a soft-lock mechanism that allows the propeller to kick up safely on contact with underwater obstructions.
-
10.9-Inch Adjustable Shaft: A 276 mm (10.9 in) shaft adjustment range (3.9 in to 14.8 in) lets anglers fine-tune motor depth for shallow flats or deeper open water.
-
Custom Steering Control: Connect the steering lines to the outer mounting points for a more powerful steering response, or move them closer to center for finer control. The optional Foot Control Steering Kit fits any standard four-bolt mounting pattern. Release the cam cleat to lift the motor smoothly and effortlessly when it's time to move.
-
Multiple Trim and Tilt Positions: Five trim angle settings (0°, 8°, 16°, 24°, 32°) plus a 70° tilt angle accommodate different hull shapes and water conditions.
-

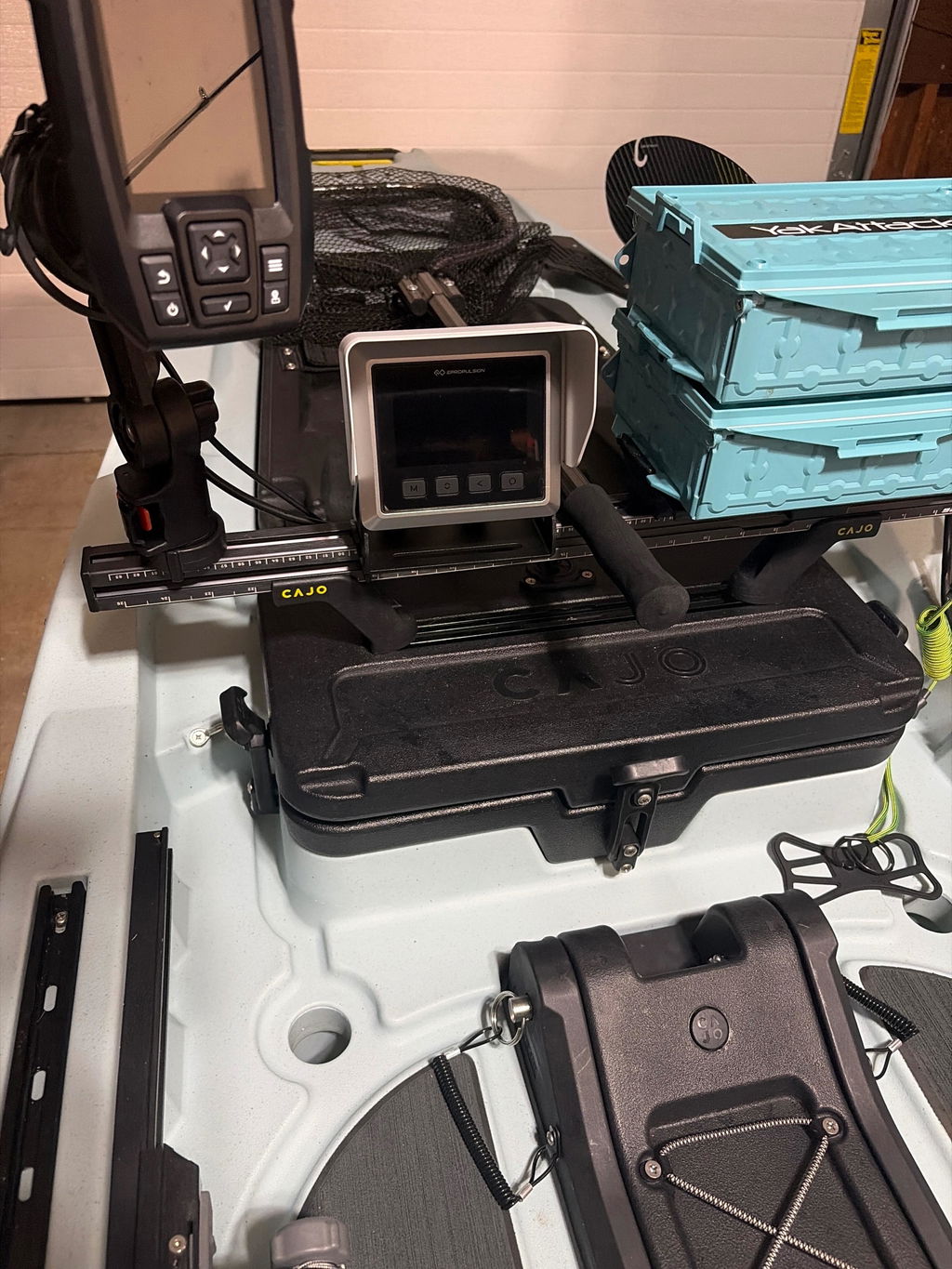

Separated Display and Low-Profile Throttle: A sun-shaded color display keeps battery and speed data visible without pulling focus from the water, while the low-profile throttle tucks beside the seat without snagging clothing.
-

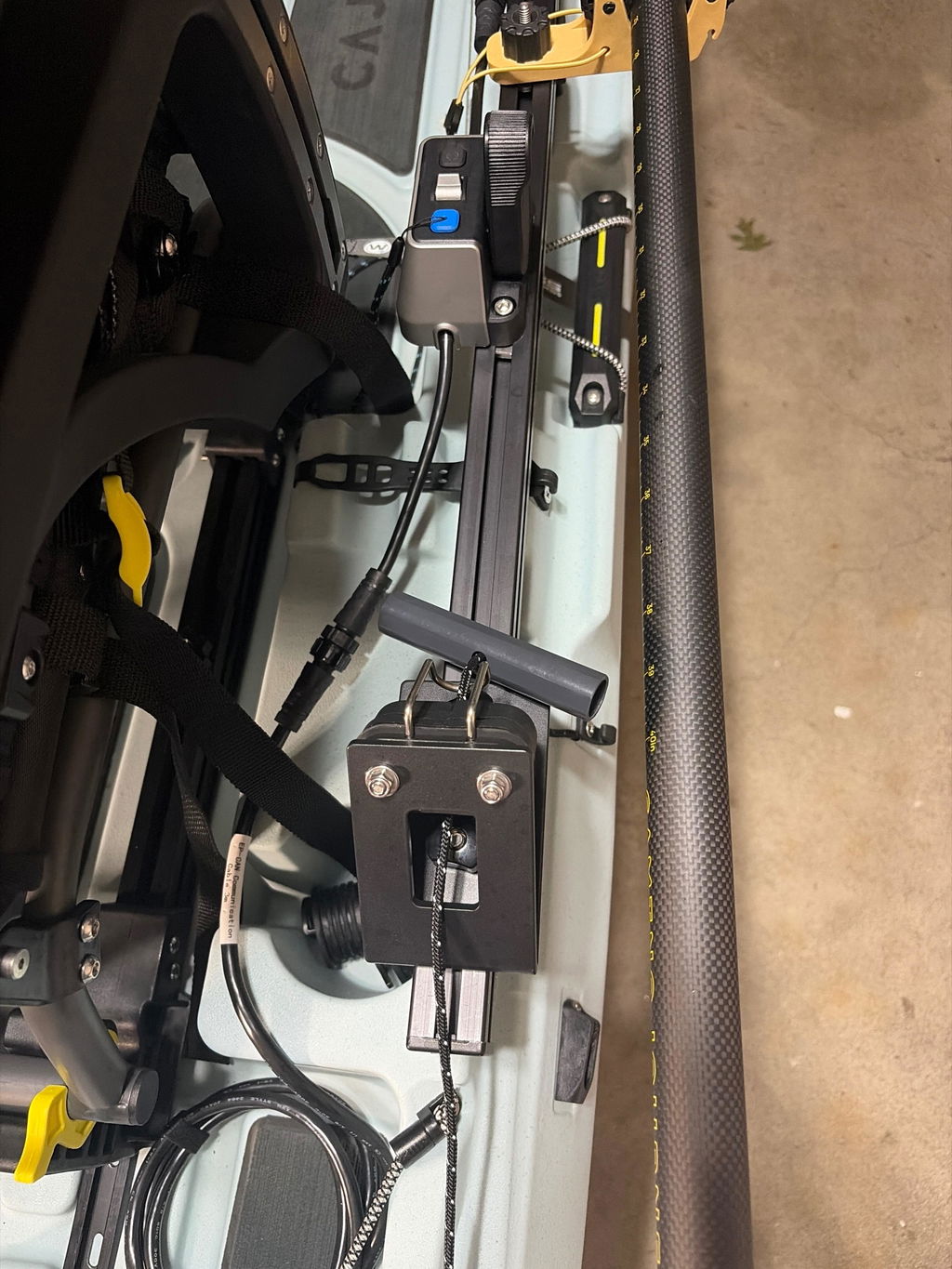

Universal Track Mounting: Compatible with standard kayak accessory track systems, allowing the display, throttle, and mount to be positioned anywhere along the track to suit the kayak's layout.
-
Quick Snap-On Installation: The motor snaps onto a mounting pin, with steering lines and cables connected in minutes — no permanent hardware modifications required.
-
Included Grab Handle: A built-in grab handle is included in case the mount blocks the kayak's existing carry handle.
-
Natural Cooling System: The motor is passively cooled with no fans or liquid cooling components, reducing maintenance and points of failure.
-
Wide Operating Temperature Range: Rated for continuous operation from -5°C to 55°C (23°F to 131°F), suitable for most seasonal fishing conditions.
-
Included AC Charger: Ships with a 100–240V AC charger for standard wall charging; a 12V charger is available as an optional accessory for on-the-go charging.
-
Optional Range Extension: The optional eLite/kLite Range Extension Kit allows a compatible third-party 12V battery to recharge the integrated battery while on the water, extending range on longer trips. ePropulsion publishes no recharge rate for the kit.
Frequently Asked Questions About the ePropulsion kLite 750
What is the ePropulsion kLite 750 designed for, and how does it differ from a trolling motor?
The kLite 750 is an electric outboard built specifically for recreational and fishing kayaks. Its 378 Wh battery is integrated into a rudder-shaped motor housing, so there is no separate battery box, no wiring run down the hull and no deck clutter. It mounts at the stern on a standard four-bolt pattern.
The practical differences from a kayak-adapted trolling motor are the integrated battery, the rudder-shaped housing that keeps steering authority with the throttle at idle, and a spring-tensioned reverse that lets the propeller kick up if it strikes something. Compare it with the ePropulsion eLite if your boat has a conventional transom instead.
What is the difference between Fish, Go and Boost modes?
Fish Mode gives smoother, more precise throttle response for positioning and trolling around structure, with a default maximum of 200 W that can be raised or lowered from the display. Go Mode is the standard cruising setting at the full 500 W rated output.
Boost Mode is entered by double-pressing the power button on the throttle and raises maximum output to 750 W. It needs the battery above 50% state of charge and within its normal temperature range, and actual output also depends on battery level and system status. Boost exits automatically on a fault, if the safety switch detaches, or if Fish Mode is selected. It is a temporary high-power setting rather than a cruising one.
How is the kLite 750 charged, and how long does it take?
An AC charger is included, and a full charge from empty takes about four hours. The battery is integrated into the motor, so you charge the unit rather than removing a pack. A 12 V charger is available separately for charging away from mains power.
The integrated battery is 378 Wh at 25.2 V, with an input voltage range of 19.3 to 29.4 V, and is rated for 800 cycles to 80% state of health. Below about 10% charge the motor enters a reduced-power limp mode, so plan your return before the battery gets there.
Can the kLite 750 run from an external battery?
No. The kLite 750 always runs from its own integrated 378 Wh battery, and there is no provision to power the motor directly from an external pack.
An optional range-extension accessory, the eLite/kLite Range Extension Kit, lets a compatible third-party 12 V battery recharge the integrated battery while you are on the water, and a solar charger can do the same. No recharge rate is published for the kit, and the kit is not included with the motor. Check with us at 844-987-5777 for current availability and battery compatibility before planning a trip around it.
What are the published speed, runtime and range figures for the kLite 750?
In a controlled test using a Crescent Kayaks Lite Tackle 2 on the integrated 378 Wh battery, the kLite 750 recorded 2 mph (3.2 km/h) at 19 W for 19 hours 54 minutes and 40 miles (64.4 km); 4 mph (6.4 km/h) at 133 W for 2 hours 48 minutes and 11 miles (17.7 km); 5.5 mph (8.9 km/h) at 500 W in Go Mode for 48 minutes and 4 miles (6.4 km); and 6 mph (9.7 km/h) at 750 W in Boost for 15 minutes and 1.5 miles (2.4 km).
On a Bonafide PWR 129 the same power levels gave 5.3 mph at 500 W and 5.8 mph at 750 W, which shows how much the hull matters. These are published test results rather than a performance guarantee. Hull shape, total load, wind, current, water conditions, propeller depth, battery condition and installation all affect what you will actually see. Both tables are on the kLite 750 product page.
How does the kLite 750 mount to a kayak, and how shallow can it run?

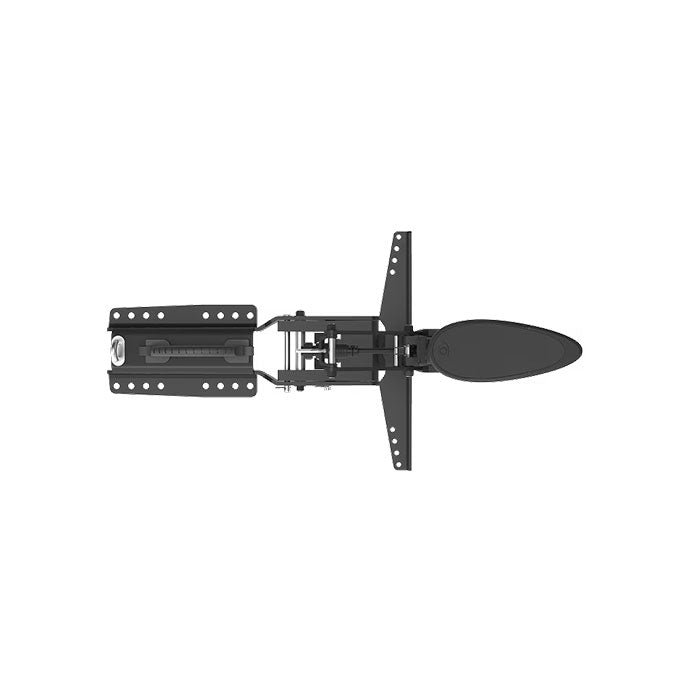

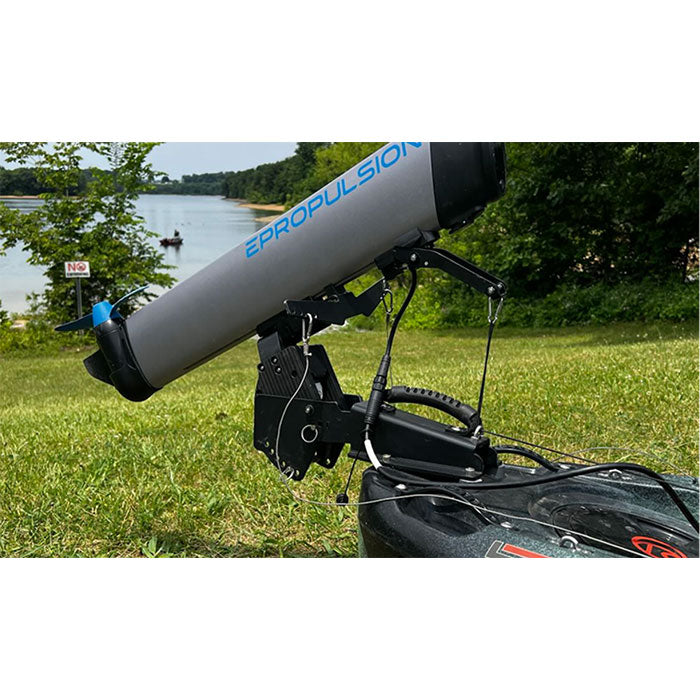

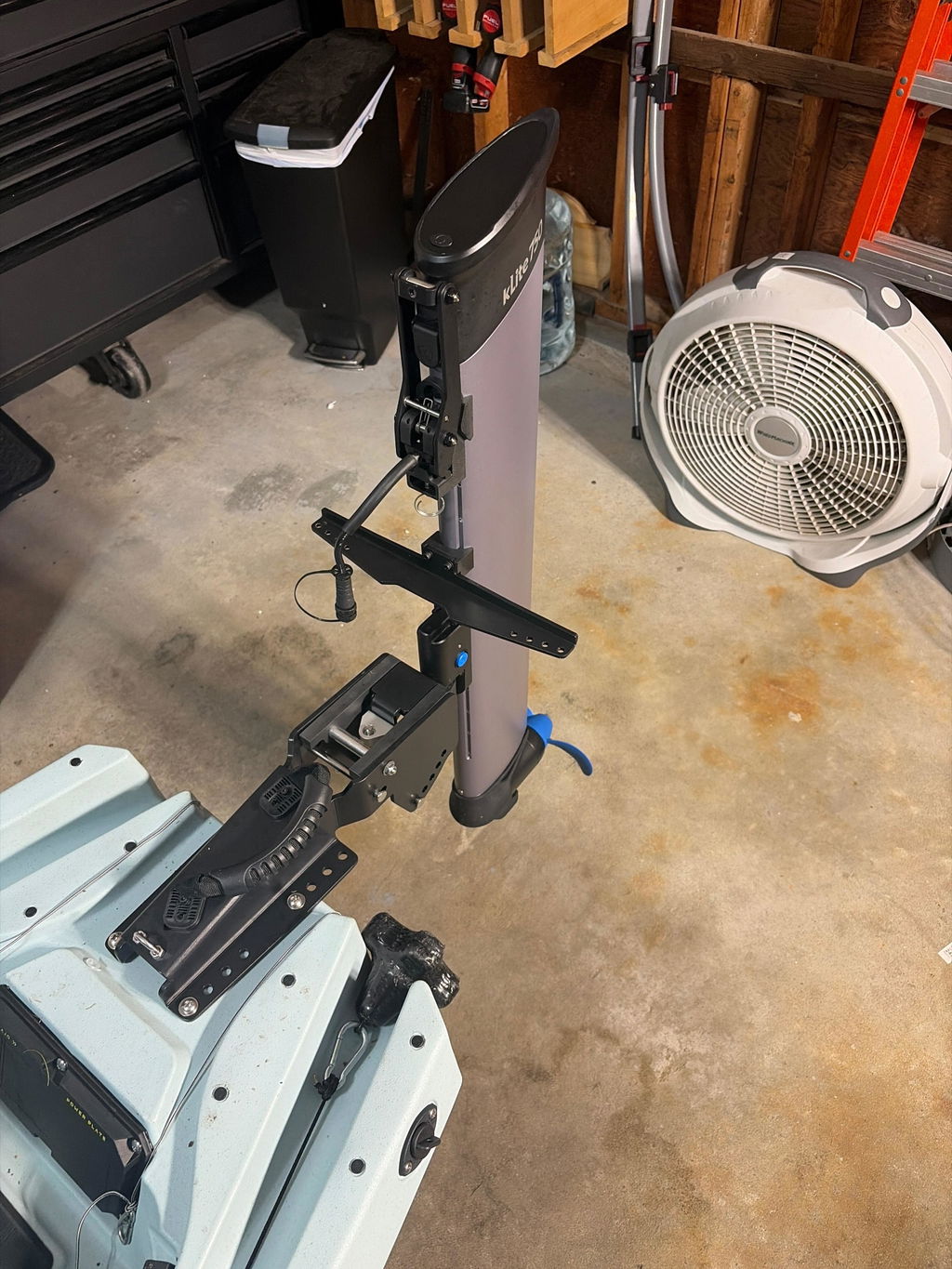

The motor attaches at the stern using a four-bolt accessory pattern, snapping onto a mounting pin with the steering lines and cables connected during setup. A kayak with a compatible four-bolt stern mount may accept the system without drilling. Other kayaks may require an adapter plate or additional installation work, so confirm the specific kayak model before ordering. The display and throttle mount to standard kayak accessory tracks, and an optional foot-control steering kit fits a standard four-bolt pattern.
It runs in as little as 7 inches (18 cm) of water. Actual clearance still depends on trim, loading, bottom conditions and how the motor is installed. The shaft adjusts through a 10.9-inch (276 mm) range, from 98.5 mm to 375 mm, and there are five trim positions plus a 70-degree tilt, so propeller depth is set to the water you are fishing.
How much weight does the kLite 750 add to a kayak?
The motor with its integrated battery weighs 14.3 lb (6.5 kg), and the motor mount adds 5.1 lb (2.3 kg), for about 19.4 lb (8.8 kg) installed. There is no separate battery to add to that, because the battery sits inside the motor housing.
That weight sits at the stern, so factor it into your kayak's capacity rating alongside your own weight and gear, and expect it to change trim. The included cam cleat and lift cord raise and lower the motor from the seat, and a grab handle is supplied in case the mount blocks your kayak's own carry handle.
What comes with the kLite 750?
The kit includes the kLite 750 with its integrated battery and mount, the body mounting kit, a steering plate with mounting base and hardware, a 3.5-inch smart display with bracket and sun hood, display installation hardware, the kayak throttle with kill switches and a spare magnet, the charger, 3 m and 1.5 m EP-CAN cables, the one-motion motor lift cam cleat with installation kit, a lift cord kit with T-handle, 5 m cord, carabiner and hex key, plus the user manual and a desiccant sachet.
Sold separately: the foot-control steering kit, a throttle mounting plate, a spare propeller, the 12 V charger and the range-extension kit. Package contents can change between production runs, so confirm anything decisive with us at 844-987-5777 before ordering.
Can the kLite 750 be used in salt water?
Yes. The motor and battery are rated IP67. The rinse routine below is not optional if you want the motor to last, and corrosion damage is excluded from warranty.
Rinse the unit promptly with fresh water after every saltwater outing, and clean the electrical contacts with an electronic contact cleaner every two months. If you have been using the solar charger or a 12 V battery to top up on the water, disconnect that cable from the charging port before you rinse and store the motor.
Do I need to register my kayak, and what warranty covers the kLite 750?
Quite possibly, yes — check before you launch. Fitting a motor can change how a kayak is classified, and those rules are set by state and local authorities, so confirm with your state's boating or fish and wildlife agency before your first trip. Requirements differ too much between jurisdictions for one answer to hold everywhere.
Product registration with ePropulsion is separate from state boat registration. It is optional, and not registering does not reduce the manufacturer warranty rights described in the current warranty terms. Those terms cover recreational and light commercial use for 24 months or 1,000 hours, whichever comes first, and commercial use — any use primarily intended to generate income — for 12 months or 1,000 hours. Consumable parts, ordinary wear, unauthorized modification and corrosion or water-ingress damage are excluded.
