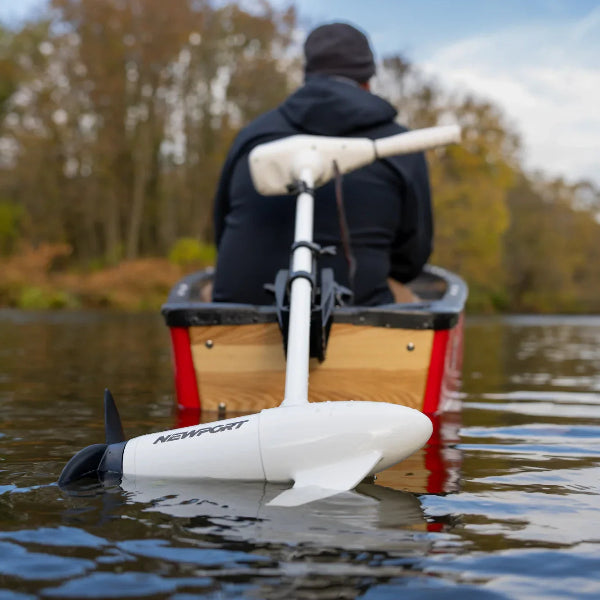

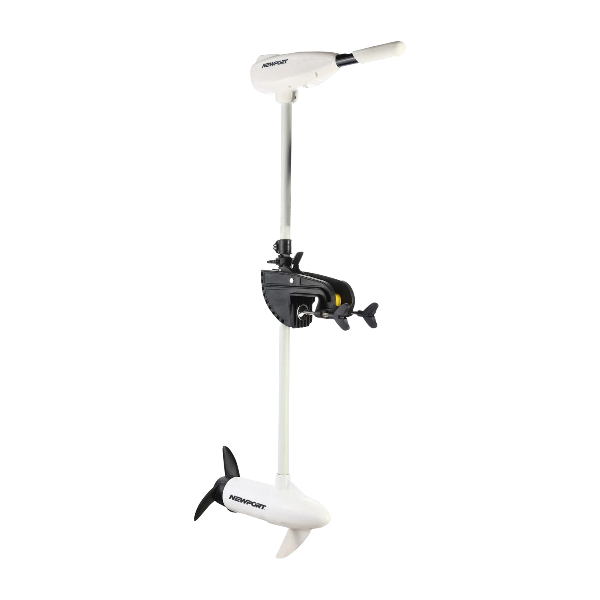

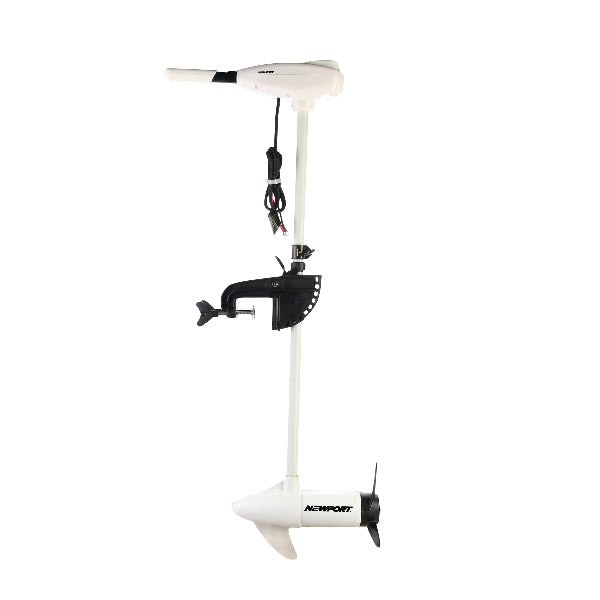

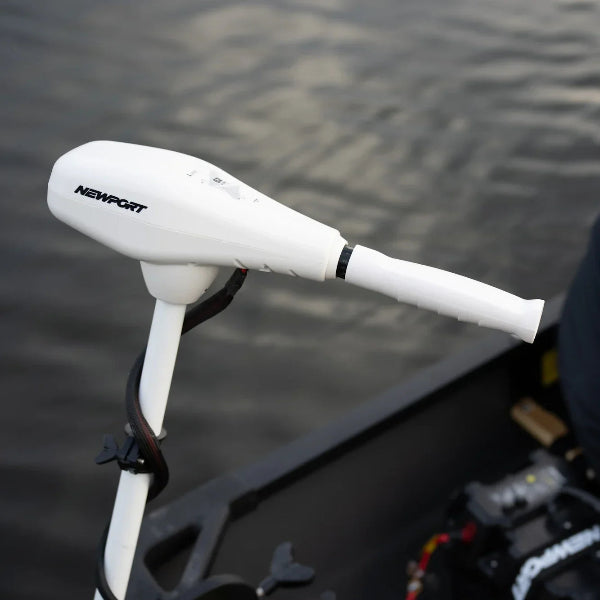

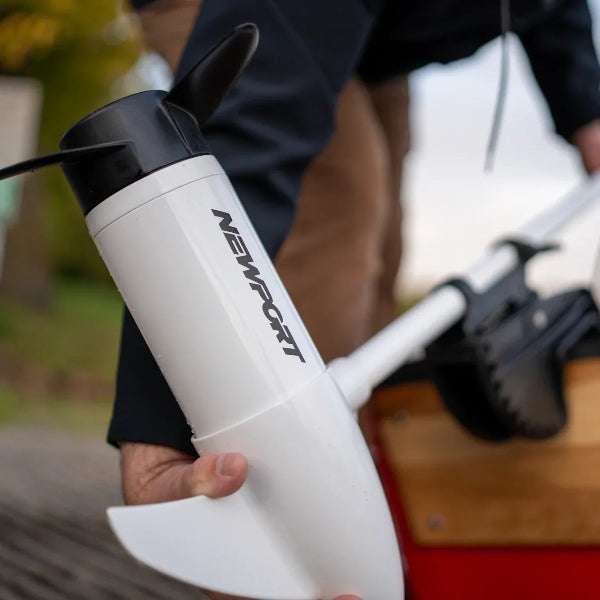

L Series Long Shaft Trolling Motor
Take control of your boat with the Newport L Series Trolling Motor, engineered for larger boats, deeper transoms, and demanding conditions where a longer shaft is essential. The L Series delivers smooth, reliable thrust with whisper-quiet operation so you can maneuver confidently without disturbing your surroundings.
Built for easy installation, the 62lb version runs on a 12V 50Ah deep cycle marine battery while the 86lb version requires a 24V system, and this motor features efficient, low-maintenance motor technology. The ergonomic throttle and digital display give you precise speed control and real-time battery monitoring, keeping you focused on the water.
Upgrade your time on the water with the L Series Trolling Motor, built for reliable power and precision handling on bigger boats.
Included: L Series Trolling Motor (40" Shaft), 3 Blade Propeller - Large, Propeller Installation Hardware, Drive-Pin, Washer, Tightening Nut and Spanner/Wrench, Circuit Breaker 60A (62lb) or 50A (86lb)
L Series Long Shaft Specs
-
Thrust Options: 62lb | 86lb
-
Shaft Length: 40"
-
Tiller/Handle: 6" Telescoping
-
Input Voltage: 12V DC (62lb) | 24V DC (86lb)
-
Weight: 23lbs | 25lbs
-
External Battery: 12V DC (62lb) | 24V DC (86lb)
-
Propeller: 3 Blade - Large
-
Motor: Brushed
-
Water Compatibility: Saltwater & Freshwater
-
Speeds: 5 forward, 3 reverse speeds
-
Max Amp Draw: 50A
-
Horsepower Equivalent: 0.93HP | 1.5 HP
L Series Long Shaft Features
Adjustable & Versatile
A fully adjustable fiberglass composite shaft stands up to any conditions, and ensures compatibility with medium to large size boats.
- 40-inch adjustable fiberglass shaft
- 6” Telescoping handle
- Large boat compatibility
Power & Portability
Despite its robust performance, the 12-volt 62lb version weighs 23 pounds and the 24-volt 86lb version weighs 25 pounds, striking a balance between power and portability. It's designed to provide powerful thrust while remaining easy to transport and install.
- 12-volt (62lb) or 24-volt (86lb) long shaft power
- 50/60A auto breaker
- 23 lb (62lb) or 25 lb (86lb) motor
Comprehensive Speed Control
Equipped with 8 speeds (5 forward and 3 reverse) a 10-inch diameter three-blade propeller and an LED battery meter offers complete control and smooth performance in any water condition.
- 5 forward & 3 reverse speeds
- 10-inch, 3-blade propeller

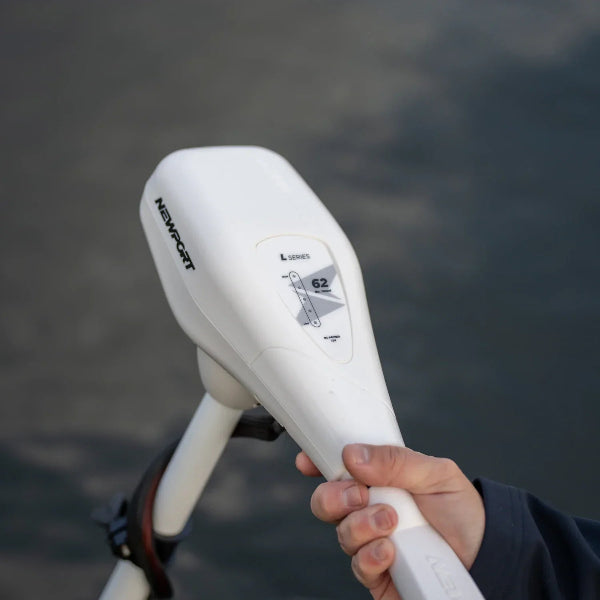

- 5-point LED battery meter
Your Satisfaction with Newport is Guaranteed:
Frequently Asked Questions About the Newport L Series
Who is the Newport L Series best suited for?
The Newport L Series suits boats with deep transoms or high freeboard, where a standard 30-inch or 36-inch shaft would leave the propeller too near the surface. Its 40-inch adjustable fiberglass composite shaft is what sets it apart. The 62-pound and 86-pound versions share a 6-inch telescoping handle, five forward and three reverse speeds, an LED battery meter and a large three-blade propeller, in a brushed motor rated for salt and fresh water. Without that reach requirement, the NV Series covers the same thrust on shorter shafts.
What is the difference between the 62-pound and 86-pound L Series versions?
Thrust and battery voltage separate the two Newport L Series versions. The 62-pound runs on 12V and weighs 23 pounds at 0.93 HP equivalent; the 86-pound version runs on 24V and weighs 25 pounds at 1.5 HP equivalent. Both share the 40-inch adjustable shaft, the telescoping handle, the five-forward and three-reverse speeds and the large three-blade propeller. The voltage difference is the one that changes what you buy: neither version's figures apply to the other, and the 86-pound motor cannot run on a single 12V battery. Do not read one version's weight or voltage as the series specification.
Which L Series version is currently offered on this Eco Fishing Shop page?
This page currently carries a Thrust option with both the 62-pound and the 86-pound L Series versions listed, so the option selector on this page tells you which is selectable right now. Availability of an individual configuration can change without the description changing, so the selector is the authority. Because the two versions need different battery systems — 12V for the 62-pound, 24V for the 86-pound — settle that before ordering rather than after. Newport builds the L Series only in these two ratings. If the one you want is not selectable, call 844-987-5777 or email sales@ecofishingshop.com.
What battery system does each L Series version require?
The 62-pound Newport L Series needs a 12V system; the 86-pound version requires a 24V battery. No battery is included with either. A 12V deep-cycle or marine battery is the recommended type for the 62-pound version. A 24V requirement cannot be satisfied by one 12V battery, and combining batteries to make 24V is wiring work — follow the connection method in the L Series owner's manual rather than general practice. Circuit protection is required: a manual-reset breaker in the motor leads within 72 inches of the battery. The LED meter is calibrated for deep-cycle lead-acid systems and is not designed for lithium, so you cannot trust its reading on a lithium pack.
What should buyers know about the L Series 40-inch adjustable shaft?
The Newport L Series shaft is 40 inches of adjustable fiberglass composite, set by a depth adjustment collar you loosen and reposition on the tube. Aim to run the propeller 6 to 12 inches below the waterline. Newport's measuring method is transom mounting point down to the waterline plus 20 inches, plus another 5 inches if you are often in rough water — which is how a boat ends up needing 40 inches rather than 36. One caution specific to this shaft: do not over-tighten the mounting bracket, because that can damage the fiberglass. Newport's shaft length guide has the full method.
What weight, amp draw, propeller, and circuit breaker apply to each L Series version?
The 62-pound Newport L Series weighs 23 pounds on 12V and ships with a 60-amp circuit breaker; the 86-pound version weighs 25 pounds on 24V and ships with a 50-amp breaker. Both carry a large three-blade propeller. On maximum amp draw, Newport's current product page and current owner's manual do not agree, so no draw figure is published here. Before you size, extend or modify wiring, cabling or circuit protection for either version, confirm the exact electrical requirement for the version you are buying with us on 844-987-5777 or with Newport directly. The supplied breaker is included equipment, not a substitute for that answer.
How do the L Series five forward and three reverse speeds work?

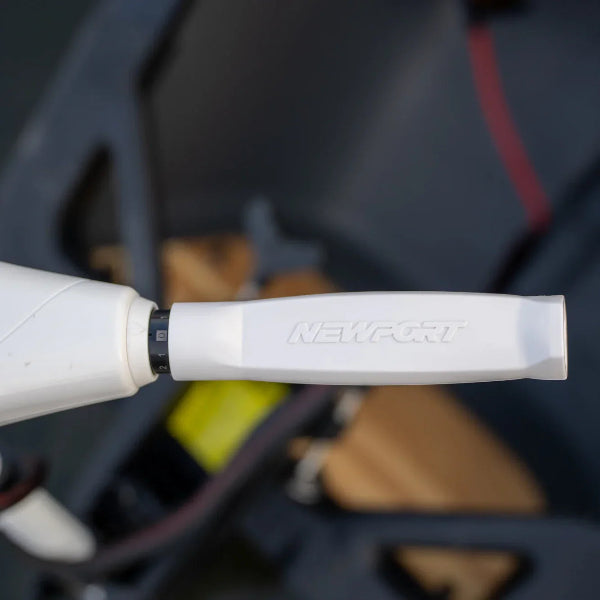

The Newport L Series gives five forward and three reverse speeds through the twist-grip handle, worked by rotating it in either direction. They are fixed steps, not a continuously variable throttle. Let the propeller stop turning before shifting between full forward and full reverse, or you risk damaging the motor. An LED meter on the top cover shows remaining charge, and it is calibrated for a deep-cycle lead-acid system rather than lithium. Recharge before the meter runs low and keep enough charge in reserve to get back under power.
How does the L Series compare with the NV or Pontoon Series?
Shaft reach and mounting method set the Newport L Series apart: it is a transom motor on a 40-inch adjustable fiberglass shaft, in 62 and 86-pound versions. The Newport NV Series covers a wider thrust range — 36 to 86 pounds — but on 30-inch and 36-inch shafts, suiting shallower transoms. The Newport Pontoon Series is not a transom motor: its bracket bolts through a pontoon deck near the centerline. Take the L Series for a deep transom, the NV for thrust choice, the Pontoon Series for a deck.
What is included with the L Series, and what saltwater care is required?
No battery is included with the Newport L Series. It ships with the motor and its 40-inch shaft, a large three-blade propeller, the installation hardware — drive pin, washer, tightening nut and spanner/wrench — and the circuit breaker for your version: 60 amps with the 62-pound, 50 amps with the 86-pound. It is rated for salt and fresh water. Rinse thoroughly with fresh water after every saltwater use, keeping the rinse to the areas that contacted salt water and the top cover dry, since water there can damage the circuitry. Disconnect the battery before working near the propeller, and store the motor where it will not freeze.
What warranty coverage comes with the L Series?
The Newport L Series carries a two-year limited warranty against defects in materials and workmanship, restricted to the original owner and non-transferable. A claim needs proof of purchase within the coverage period plus photos or video of the damage, so keep the receipt and record the serial number. No motor registration is required and no registration deadline applies. Commercial use of any kind is excluded, along with neglect, abuse, lack of maintenance, accident, improper use or assembly, and failed repair attempts. Transport charges on a claim fall to the buyer. Full terms sit on the Newport warranty page.
