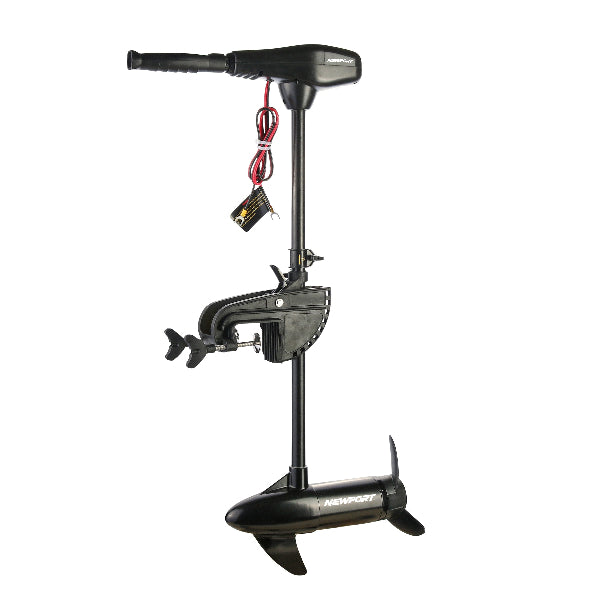

NV SeriesTrolling Motor
Power your adventures with the Newport NV Series Trolling Motor, our most popular and #1 selling motor trusted by anglers everywhere. Built for both saltwater and freshwater, the NV Series delivers smooth, quiet, and reliable performance for everything from lakes and rivers to bays and coastal waters.
With multiple thrust options up to 86lb, the NV Series gives you the right power for any setup. Models up to 62lb run on a 12V deep cycle marine battery, while the 86lb motor requires a 24V system for maximum performance. Marine-grade construction ensures lasting durability, and the intuitive throttle with digital display provides precise speed control and real-time battery monitoring so you can focus on fishing.
Fish with confidence using the Newport NV Series Trolling Motor, the best-selling choice for anglers who demand dependable power and lasting performance.
Included: NV Series Trolling Motor, Propeller (2 Blade Small (36lb) | 3 Blade Small (46lb) | 3 Blade Large (55lb - 86lb)), Installation tools, Drive-Pin, Washer, Tightening Nut and Spanner/Wrench, Circuit Breaker: 40A (36lb) | 50A (40lb, 46lb) | 60A (55lb, 62lb, 86lb)
Newport NV Series Specs
-
Thrust Options: 36lb | 46lb | 55lb | 62lb | 86lb
-
Shaft Length: 30" | 36"
-
Tiller/Handle: 6" Telescoping
-
Input Voltage: 12V DC| 24V DC
-
Weight: 18lbs | 20lbs | 23lbs | 23 lbs | 25lbs
-
External Battery: 12V DC | 24V DC
-
Propeller: 2 Blade Small (36lb) | 3 Blade Small (46lb) | 3 Blade Large (55lb - 86lb)
-
Motor: Brushed
-
Water Compatibility: Saltwater & Freshwater
-
Speeds: 5 forward, 3 reverse speeds
-
Max Amp Draw: 29A | 40A | 52A | 58A | 48A
-
Horsepower Equivalent: 0.48hp | 0.64hp | 0.83hp | 0.93hp | 1.5hp
Newport NV Series Features
Thrust Options
A variety of thrust options for choosing the perfect power level to fit your exact needs.
- 12V compatibility with 36lb, 46lb, 55lb, 62lb thrust options
- 24V compatibility with 86lb thrust option
Adjustable & Customizable
Adjustable shaft lengths and a telescoping handle suit a wide range of watercraft, ensuring optimized performance and comfort.
- 30-36” adjustable shaft

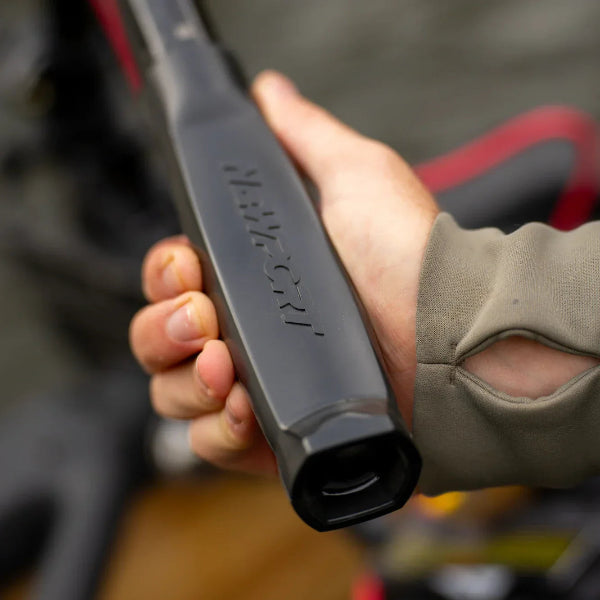

- 6” telescoping handle
Efficient Speed Control
With 5 forward speeds and 3 reverse speeds, this motor delivers smooth and efficient speed control while a built-in battery meter indicates remaining range.
- 5 forward + 3 reverse speeds

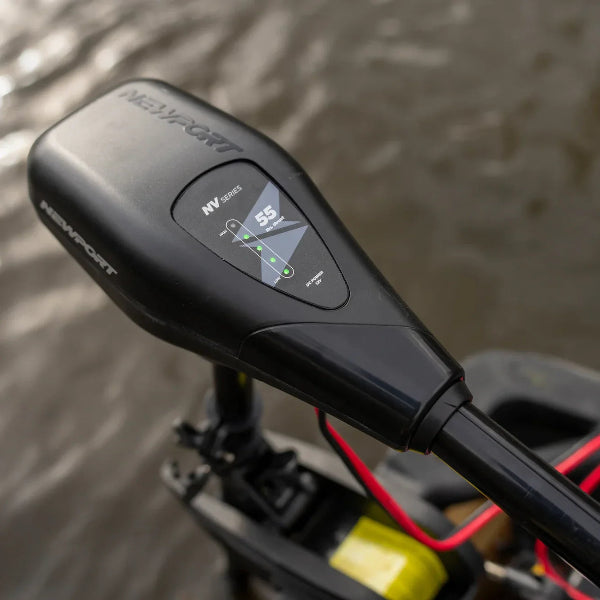

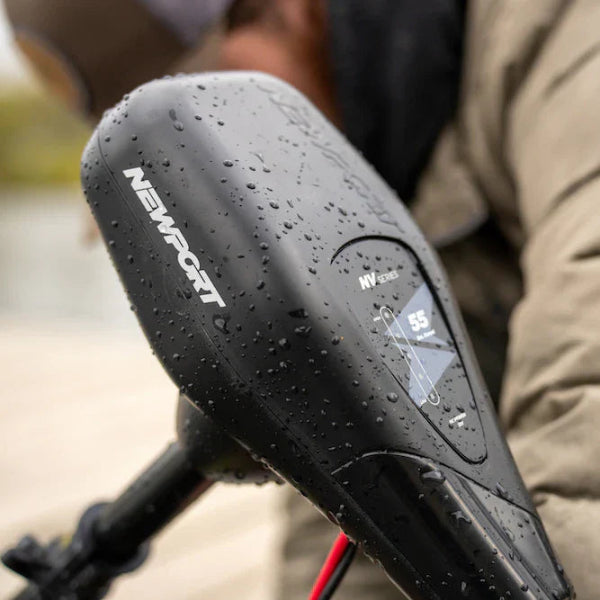

- 5-point LED Battery Meter
- 2- & 3-blade propeller efficiency
Your Satisfaction with Newport is Guaranteed:
Frequently Asked Questions About the Newport NV Series
Who is the Newport NV Series best suited for?
The Newport NV Series suits anglers who want to pick a thrust rating to match their boat, from a light dinghy up to a heavier hull, on a transom-mounted tiller motor. It spans five thrust ratings from 36 to 86 pounds with 30-inch and 36-inch shafts, five forward and three reverse speeds, a 6-inch telescoping handle and a five-point LED meter, in a brushed motor rated for salt and fresh water. The four smaller ratings run on 12V; the 86-pound needs 24V. That breadth is what the series is for.
How should buyers choose among the available NV Series thrust versions?
Choose an NV Series thrust rating from total boat weight plus maximum load, not length. Newport's guidance is roughly 5 pounds of thrust per 200 pounds of that total, with more for wind, current, tide or chop. Then check the exact configuration: voltage, weight, maximum draw, battery requirement and supplied components vary by version and do not simply rise with thrust — the 86-pound runs on 24V and draws less than the 62-pound. For shaft length, add 20 inches to your transom-to-waterline measurement, per Newport's shaft length guide.
Which NV Series configuration is currently offered on this Eco Fishing Shop page?
This page currently carries a Thrust option listing all five NV Series versions — 36, 46, 55, 62 and 86 pounds — so the option selector on this page is what tells you which are selectable right now. Availability of an individual configuration can change without the description changing, so trust the selector rather than any text. Decide on voltage before thrust if you are near the top of the range: the 86-pound version needs a 24V system while the other four run on 12V. If what you want is not selectable, call 844-987-5777 or email sales@ecofishingshop.com and we will tell you what we can supply.
Which NV Series versions require 12V, and which require 24V?
The 36, 46, 55 and 62-pound Newport NV Series versions run on 12V. The 86-pound version requires a 24V system. No battery is included with any version. A 12V deep-cycle or marine battery is the recommended type for the 12V versions, and a 24V requirement cannot be met with one 12V battery — the two are not interchangeable. Building 24V from two batteries is wiring work, so follow the connection method in the NV Series owner's manual rather than general practice. Circuit protection is required: a manual-reset breaker in the motor leads within 72 inches of the battery. The LED meter is not designed for lithium systems, so its reading cannot be trusted on a lithium pack.
Which shaft length, weight, amp draw, and propeller apply to each NV Series version?
Each Newport NV Series version has its own shaft length, weight, amp draw and propeller, and the propeller is not the same throughout: the 36-pound uses a small two-blade, the 46-pound a small three-blade, and the 55, 62 and 86-pound versions a large three-blade. The 36-pound: 30-inch shaft, 12V, 18 pounds, up to 29 amps, 348 watts, 0.48 HP equivalent, 40-amp breaker. The 46-pound: 30-inch, 12V, 20 pounds, 40 amps, 480 watts, 0.64 HP, 50-amp breaker. The 55-pound: 30-inch, 12V, 23 pounds, 52 amps, 624 watts, 0.83 HP, 60-amp breaker. The 62-pound: 36-inch, 12V, 23 pounds, 58 amps, 696 watts, 0.93 HP, 60-amp breaker. The 86-pound: 36-inch, 24V, 25 pounds, 48 amps, 1,152 watts, 1.5 HP, 60-amp breaker.
How do the NV Series five forward and three reverse speeds work?
The Newport NV Series uses a twist-grip tiller for five forward and three reverse speeds, worked by rotating the handle in either direction. They are fixed steps rather than a continuously variable throttle. Let the propeller stop turning before shifting from full forward to full reverse, or you risk motor damage. Five LEDs show remaining charge; on a 12V version, four of them out means input voltage has fallen below 9.5V, so disconnect and recharge. Disconnect from the battery whenever the motor leaves the water.
How does the NV Series compare with the X or L Series?
The Newport NV Series, X Series and L Series are brushed tiller trolling motors with five forward and three reverse speeds. The NV Series is the range: five ratings, 36 to 86 pounds, on 30-inch and 36-inch shafts. The Newport X Series is one 55-pound configuration on a 36-inch shaft, distinguished by its 6-inch telescoping, 30-degree tilting handle. The Newport L Series runs 62 and 86-pound versions on a 40-inch fiberglass shaft for deeper transoms. Pick the NV for thrust choice, the X for the handle, the L for reach.
What is included with the NV Series, and is the battery included?
No battery is included with the Newport NV Series. It ships with the motor, the propeller matched to your thrust version, the installation tools and hardware — drive pin, washer, tightening nut and spanner/wrench — and the circuit breaker for that version. Breaker amperage follows the version: 40 amps with the 36-pound, 50 with the 46-pound, and 60 with the 55, 62 and 86-pound versions. You supply the battery system — 12V for the four smaller versions, 24V for the 86-pound — plus a charger and cabling.
Can the NV Series be used in salt water, and what maintenance is required?
Yes — the Newport NV Series is rated for salt and fresh water, thanks to the stainless steel and zinc hardware used across Newport's trolling motors. Rinse thoroughly with fresh water after every saltwater use, limiting the rinse to the areas that contacted salt water and keeping the top cover dry, because water there can damage the internal circuitry. Salt water left on metal corrodes it eventually. Disconnect the battery before clearing line or weed from the propeller or changing it, and store the motor where it will not freeze. Newport's saltwater use guidance carries its full rinse recommendation.
What warranty coverage comes with the NV Series?
The Newport NV Series carries a two-year limited warranty against defects in materials and workmanship, restricted to the original owner and non-transferable. Claims need proof of purchase within the coverage period plus photos or video of the damage, so keep your receipt and record the serial number. Registering the motor is not required and no registration deadline applies. Commercial use of any kind is excluded, as are neglect, abuse, lack of maintenance, accident, improper use or assembly, and failed repair attempts. The buyer pays transport charges on a claim. Full terms are on the Newport warranty page.
