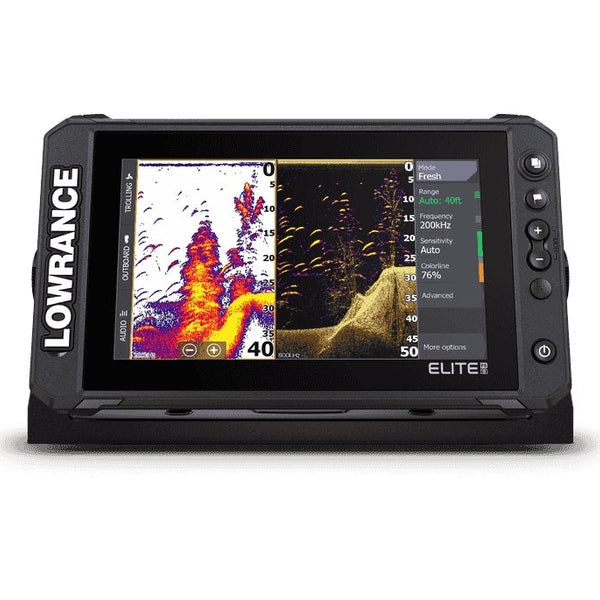

Lowrance Elite FS 9 Chartplotter

Name: Lowrance Elite FS 9 Chartplotter
Brand: Lowrance
SKU: WTLOW00015707001
Price: 849.0 USD
Availability: InStock

$849.00 - $849.00

$849.00

$849.00 - $849.00

$849.00

✓ Authorized Lowrance Dealer
✓ Lowest Price Guaranteed
✓ Free & Fast Shipping: In Stock & Ready to Ship
✓ Questions? Call a Lowrance Expert: 1-844-987-5777

Description

Lowrance Elite FS 9 No Transducer

Model: 000-15707-001

ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
High Resolution Multi-touch screen
Preloaded with C-MAP Contour + charts (AMER,APAC)
NMEA 2000®: Support and control NMEA 2000® devices
Halo Radar: Drive Lowrance radar domes directly
Halo Radar: Drive Lowrance radar domes directly

Specifications

Environmental
Operating temperature range	-15°C to +55°C (5°F to 131°F)
Storage temperature	-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6 and IPX7
Electrical
Supply voltage	12 V DC (10 - 17 V DC min - max)
Recommended fuse rating	3 A
Power consumption (maximum)	28 W (2 A at 13.8 V DC)
Display
Resolution	800 x 480 pixels
Viewing angles in degrees	50° top, 60° bottom, 70° left and right
Brightness	> 1200 nits
Touch screen	Multitouch
Physical
Weight (display only)	1.2 kg (2.7 lbs.)
Compass Safe Distance	0.5 m (1.6 ft.)
Interface/Connectivity
NMEA 2000®	1 port (Micro-C connector)
Data card reader	1x slot (microSD, SDXC)
Ethernet	1 port, (5-pin Ethernet connector, 100Base-T)
Sonar	1 port (9-pin connector)
WiFI Internal	802.11b/g/n : No wireless networking between units
Bluetooth®	4.0 with support for Bluetooth® Classic
GPS	10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:

Elite FS 9 Display
Sun cover
Mouning bracket and knobs
Power cable
Fuse and fuse holder

Lowrance Elite FS 9 Chartplotter
