Swellpro Fisherman FD3 Fishing Drone
Fisherman FD3 is SwellPro’s most easy-to-use waterproof fishing drone with camera and bait release. It consolidates several advantages from its brother-in-arms: the power-efficiency from FD1, the ease-of-use from SD4, the enhanced reliability from Max. FD3 opens a new realm of possibilities for shore-based anglers: cast baits far beyond the breaking waves and get the trophy fish fast.
Fisherman FD3 can fly safely while carrying baits of up to 4.4 lbs or 2.0 kg into the ocean. To maximize the reliability, efficiency and high power-to-payload ratio, FD3 utilizes a high-voltage 6S battery, high-thrust brushless motors and high-speed ESC.
SwellPro Fisherman FD3 Specs
Remote Controller
-
Size: 11*7.5*3 inch / 276*190*74 mm
-
Weight: 1.56 lbs / 709 g
-
Operating Frequency: 2.405-2.475 GHz, 5.725 - 5.825 GHz (advanced version); 2.405-2.475 GHz (basic version)
-
Sensitivity: -92dB
-
Battery: 2S 3000 mAh
-
Working time: 5 hours (advanced version); 9 hours (basic version)
-
Charging time: 3 hours
-
Power input: 5V/2A USB-C
-
Multi-color display (advanced version): Screen size: 5 inch, Screen resolution: 800*480 px, Screen brightness: 500 cd/m2, Screen Aspect ratio: 16:9
-
Monochrome display (basic version): Screen size: 3.5 inch
Flight Battery
-
Nominal Capacity: 4200mAh
-
Nominal Voltage: 23.1V
-
Type: 6S LIHV
-
Size: 6*3.2*1.9 in / 153.6*82.4*48.3mm
-
Weight: 1.57 lbs / 716 g
-
Working Temperature: 32℉ ~ 104℉ / 0℃ ~ 40℃
-
Charging Time: 120 mins
-
Max Charging Current: 5A
Charger
-
Input: 100~240V
-
Output: 25.2V
-
Max Charging Power: 150W
-
Supported Battery Types and Cells: 6S LIHV
-
Size: 5.6*4*2.4 inch / 143*100*60 mm
-
Weight: 1 lb / 454.6 g
-
Working Temperature: 32℉ ~ 140℉
-
Storage Temperature: 0℃ ~ 60℃
-
Power cable: 3.9 feet / 1.2 m
-
Charging cable: 1.6 feet / 0.5 m
Bait Release
-
Waterproof rating: IP67
-
Max payload capacity: 4.4 lbs / 2 kg
-
Size: 2.9*1.9*1.4 in / 75*50*37.5 mm
-
Weight: 3.5 oz / 100 g
Aircraft
-
Flight Time: up to 27 mins (no wind & no load)
-
Waterproof Rating: IP67
-
Weight: 5.5 lbs / 2.54 kg (including battery, propellers, gimbal camera, and payload release module)/li>
-
Size (W/O Propeller): 14.6*14.6*7.9 in
-
Max Ascent Speed: 7 mph / 3 m/s
-
Max Descent Speed: 4.5 mph / 2 m/s
-
Max Flight Speed: GPS: 22 mph / 10 m/s, ATTI: 40 mph / 18 m/s (without payload); 31 mph / 14 m/s (with payload)
-
Max Tilt Angle 30°
-
Max Altitude From Takeoff Point: 393 ft / 120 m
-
Max Flight Distance: 1 mile / 1500 m
-
Max Image Transmission Distance: 0.74 mile / 1200 m
-
Max Payload Capacity: 4.4 lbs / 2 kg
-
Max Wind Speed Resistance: 40 mph / 18 m/s / 35 knots
-
Hovering Precision: ±1.6 feet / ±0.5 m
-
Working Temperature: 14℉ ~ 104℉ / -10℃ ~ 40℃
-
Satellite Positioning Systems: GPS/Galileo
Camera
-
Waterproof rating: IP67
-
Stabilization: 1-axis (tilt)
-
Tilt range: -90° to 0°
-
Weight: 0.38 lbs / 176.5 g
-
Size: 3.1*2.7*2.7 inch / 79*69*70 mm
-
Image sensor: 1/2.3 CMOS, 12M
-
Lens: F4.5mm f/2.65, FOV: 92.6°
-
ISO range: 100 - 3200
-
Shutter speed: 16 - 1/16000 s
-
Video resolution: 4K:30fps | 2.7K:60fps | 1080P:120/60/30fps | 720P: 240/120/60fps
-
Photo resolution: 4000*3000 (4:3), 3840*2160 (16:9)
-
Max video bitrate: 60 Mbps
-
Photo format: JPEG / DNG (RAW)
-
Video format: MP4 /MOV
-
Supported memory card: microSD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, recommend using Class 10 or above & UHS-1 rating
-
Working temperature: 14℉ ~ 104℉ / -10℃ - 40°C
In the Box
-
Basic Version: Aircraft, Remote controller, Flight battery, Charger, 2 x Propellers (pairs), Bait release, USB-C cable, Charging cable, Power adapter, Phone mount, Carry case
-

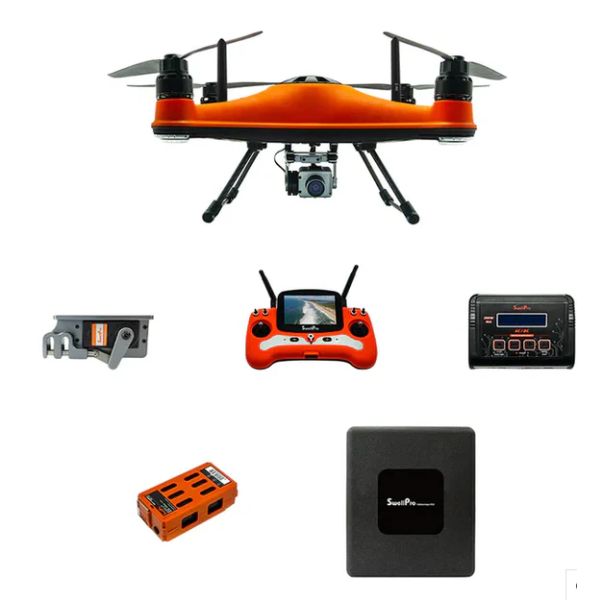

Advance Version: Aircraft, Remote controller, Flight battery, Charger, 2 x Propellers (pairs), Camera, Bait release, USB-C cable, Charging cable, Power adapter, Phone mount, Carry case
SwellPro Fisherman FD3 Features
GPS 9.0
The latest 9th-gen GPS, compared with predecessors, makes great improvements in assisting FD3's flight by providing accurate positioning, navigation, and several safety features.
Pendulum-free
The S5 is fine-tuned to increase stability and reduce pendulum effect while the drone is carrying a swaying baited line.
Screw-on Propellers
The threaded propeller mount allows for easy installation and keep the propellers from flying off the fast-spinning motors when the FD3 requires lots of thrust.
Auto-drop & Return
Fisherman FD3 can automatically release the baits and fly back to the shore in case of low battery and loss of signal.
IP67 Saltwater-proof
The aircraft of FD3 is entirely sealed, then air-pressure tested and dunk tested to guarantee 100% waterproof. The fulsage is made from marine-grade ABS to increase strength and prevent distortion.
Higher accuracy
Being able to acquire up to 30 satellites, FD3 ensures precise navigation and maintains stable hovering in place.
Faster Acquisition
With stronger signal reception, FD picks up satellites more quickly than ever and reduces the time required to unlock motors.
S5 Flight Controller
100% faster than S4. Refined algorithms for improved flight stability and altitude control.
Higher tolerance for heat, interference, and vibration. More real-time data feedback for an interactive and safe control. The new S5 flight controller powers the FD3 to reaches new heights in the performance of fishing drones.
Calibration-free
The S5 can automatically calibrate the flight sensors and eliminate magnetic interference to ensure an accurate and reliable flight performance in different locations. You don’t need to calibrate the FD3 in any beach of the world.
Corrosion-free
The waterproof motors, waterproof bait release and internal electronics of FD3 are coated with corrosion-resistant coating - adding an extra layer of protection against the salty air above the ocean.
Self-Floating Design
We designed the FD3 with sufficient buoyancy on the aircraft itself. The drone can keep floating when landing on the water and take off again.
Level 7 Wind Resistance
Thanks to the strong propulsion system and the GPS 9.0, FD3 can maintain a stable position and attitude in winds up to 18 m/s (40mph / 35 knots).
Automatic Flip
If the FD3 accidentally capsizes in the water, you can use the joysticks to flip it back to its normal position, and fly it back to the shore.
Slide-in Battery
Swapping battery is super easy. Open the hatch door, slide the battery into the compartment, hit the power button, then you are good to go! The hatch door is 100% waterproof with a rubber seal when closed.
Drone-cast at Your Fingertips
The FDFly APP enable several autopilot features on the FD3. That makes it even easier for anglers who have no piloting experiences to fly baits out.
Multi-satellite
FD3 can access multiple satellite systems including GPS, GlONASS, Galileo, and BeiDou for better signal quality and accuracy.
Fisherman-friendly Remote Controller
The remote controller of FD3 has a sleek game-console design for maximum comfort. The interface is clean with well-labeled buttons for intuitive control. Pilots can rely on the on-screen telemetry, video feedback and voice alerts to get situational awareness of the aircraft in real-time. A splash-proof and sand-proof body allows the remote controller to survive on the beach. Controlling FD3 is as easy as playing video games.
Interference-free
Advanced signal processing technology is implemented in the GPS receiver to filter out interference and noise.
![Specs]()
![Specs]()
