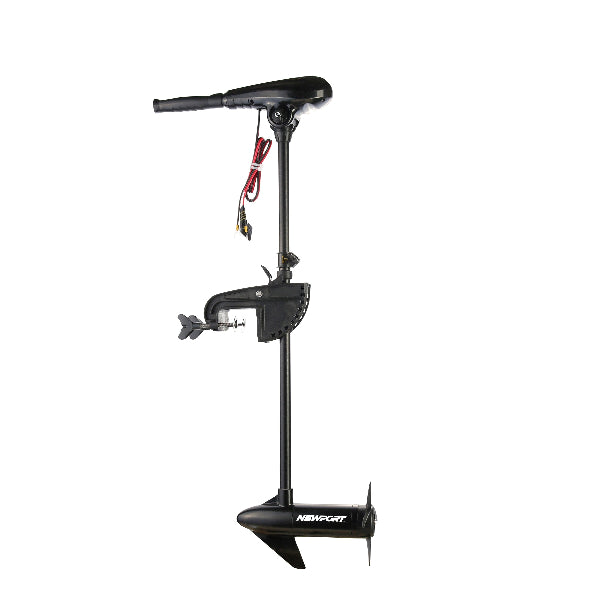

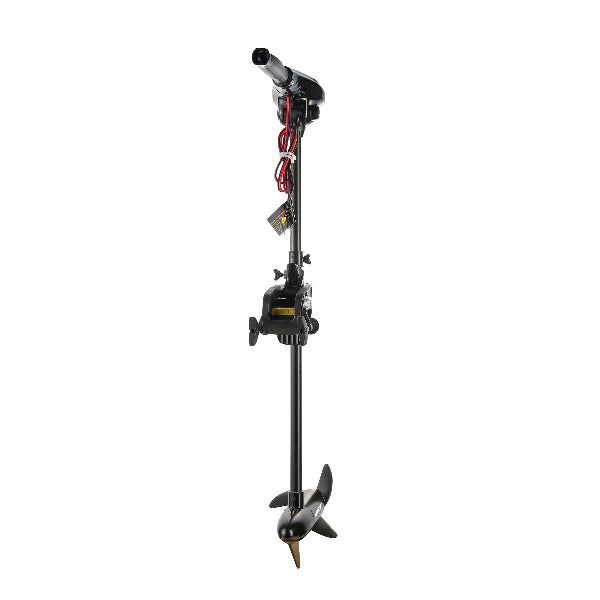

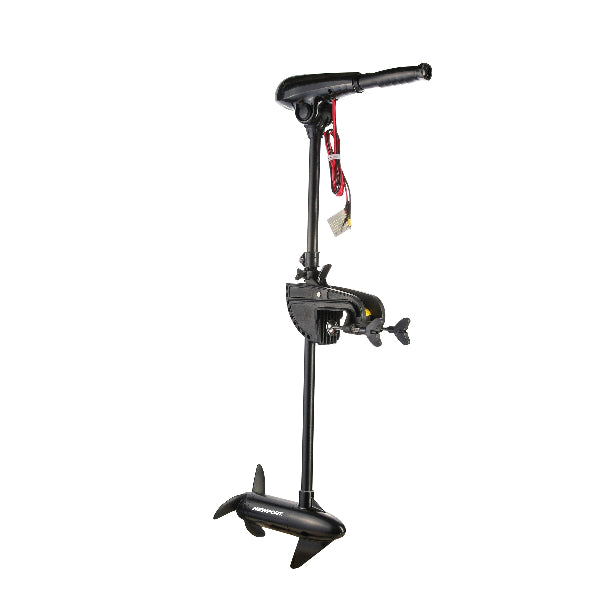

X Series Adjustable Handle Trolling Motor
Dominate your fishing grounds with the Newport X Series Trolling Motor, engineered for anglers who demand top-tier thrust, comfort, and exceptional maneuverability. Built with advanced brushed technology and designed for durability, the X Series delivers smooth, quiet, and efficient propulsion for freshwater and saltwater adventures alike.
Powered by a 12V 50Ah deep cycle marine battery, this trolling motor offers long-lasting runtime and consistent performance. Its lightweight, compact design makes installation easy, while the extendable, multi-angle adjustable handle lets you set the perfect length and tilt for your boat and fishing style. Paired with an ergonomic throttle and digital display, you get precise speed control and real-time battery monitoring to stay on the water longer.
Elevate your fishing game with the X Series Electric Trolling Motor, engineered for power and designed for precision.
Included: X Series Electric Trolling Motor (36" Shaft), Propeller 3 Blade Large (55lb), Propeller Installation Hardware, Drive-Pin, Washer, Tightening Nut, and Spanner/Wrench, Circuit Breaker 50A (55lb)
Newport X Series Specs
-
Thrust Options: 55lb
-
Shaft Length: 36"
-
Tiller/Handle: 6" Telescoping, 30˚ Tilting
-
Input Voltage: 12V DC
-
Weight: 23lbs
-
External Battery: 12V DC
-
Propeller: 3 Blade
-
Motor: Brushed
-
Water Compatibility: Saltwater & Freshwater
-
Speeds: 5 forward, 3 reverse speeds
-
Max Amp Draw: 52A
-
Horsepower Equivalent: 0.83 HP
Your Satisfaction with Newport is Guaranteed:
Frequently Asked Questions About the Newport X Series
Who is the Newport X Series best suited for?
The Newport X Series suits anglers on small to mid-size boats who want a 12V transom trolling motor with a handle that adjusts for length and angle rather than a fixed tiller. Its 36-inch shaft suits a taller transom, and the 6-inch telescoping, 30-degree tilting handle sets a comfortable position seated or standing. It produces 55 pounds of thrust from a brushed motor, with five forward and three reverse speeds and a ten-point LED display. It is rated for salt and fresh water; the care answer below covers the rinse.
How does the X Series compare with the NV or Kayak Series?
The Newport X Series, NV Series and Kayak Series are all brushed tiller trolling motors with five forward and three reverse speeds. The X Series is built around its adjustable handle: 6-inch telescoping plus 30 degrees of tilt. Shaft length separates them: 36 inches here, 24 on the Newport Kayak Series, and 30 or 36 across the Newport NV Series, which is 12V except its 86-pound version. It matches the 55-pound NV on thrust, so weigh shaft length, battery meter, supplied components and fit alongside the handle.
What does the X Series 55-pound thrust rating mean?
55 pounds is the static push the Newport X Series propeller can produce — a force measurement, not a speed and not a horsepower figure. The published horsepower equivalent for this configuration is 0.83 HP, drawing up to 52 amps for 624 watts on 12V. Thrust, wattage, horsepower equivalence, speed and suitable boat size measure different things, and none converts into another. For sizing, Newport's thrust guidance suggests roughly 5 pounds of thrust per 200 pounds of total boat weight plus load, with more for wind and current.
What battery and circuit breaker does the X Series require?
The Newport X Series runs on a single 12V deep-cycle or marine battery — a 12V 50Ah battery is the recommended starting point — and no battery is included. It ships with a 50-amp circuit breaker, and its published maximum draw is 52 amps — fit the breaker supplied and talk to us before substituting another rating. Install a manual-reset breaker in the motor leads within 72 inches of the battery, as the X Series owner's manual directs. One point worth knowing: the ten-LED meter is calibrated for a 12V lead-acid deep-cycle system and is not designed for lithium — its reading cannot be trusted on a lithium pack, so monitor charge another way if you run lithium.
Will the X Series 36-inch shaft fit every boat?
No — a 36-inch shaft does not suit every boat, and shaft choice on the Newport X Series cannot be settled without measuring your transom first. Newport's method is to measure from the mounting spot on the transom down to the waterline and add 20 inches, adding another 5 inches if you are often in rough water. The depth adjustment collar then sets the propeller 6 to 12 inches below the surface. Too short and the propeller ventilates when the hull pitches; too long and it drags and is exposed. You also need a transom that suits the mount, clearance for the handle, and a battery position. Newport's shaft length guide has the full method.

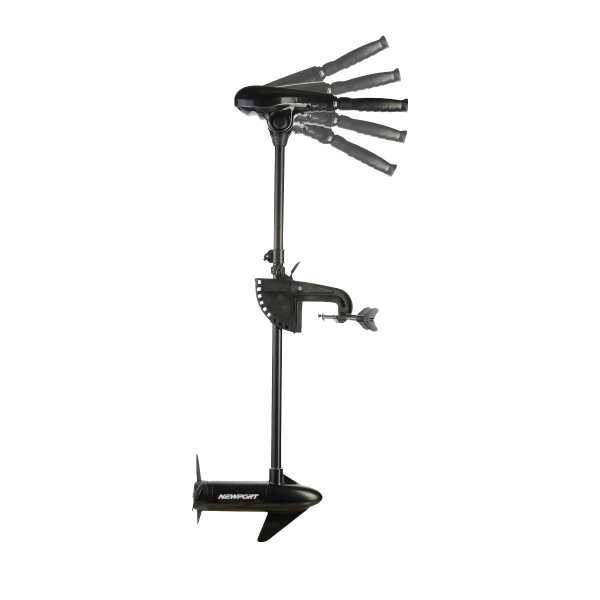

How does the X Series telescoping, tilting handle work?
The Newport X Series handle telescopes 6 inches and tilts through 30 degrees, so you can set both reach and angle. Loosen the rotating tension adjusting knob, move the handle to the position you want, then re-tighten it. That lets you steer comfortably from a seated position at the stern or reach the handle from further forward, and angle it up when you are standing. The tilt lever raises and lowers the motor itself. Set the handle before you get underway rather than adjusting it while steering.

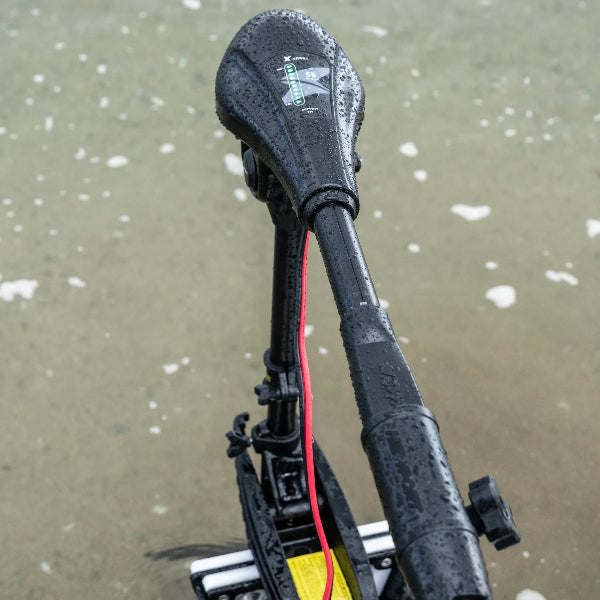

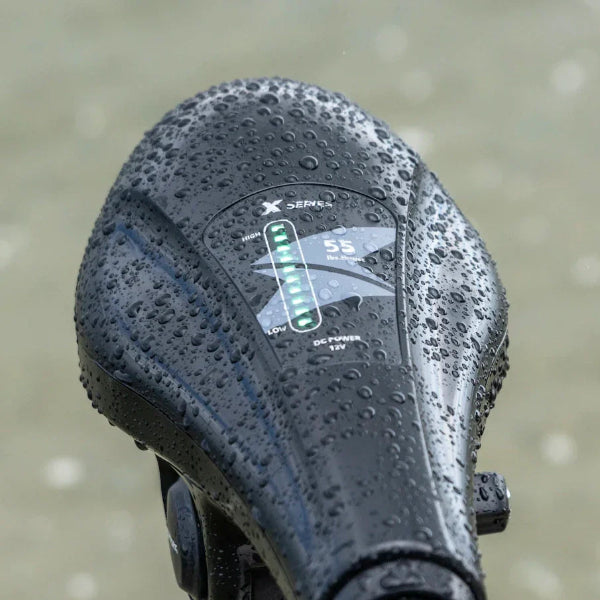

How do the X Series forward and reverse speeds and battery meter work?
The Newport X Series gives five forward and three reverse speeds through the twist-grip handle, and shows remaining charge on ten LED lights set into the top cover. The speeds are fixed steps, not a continuously variable throttle. Let the propeller stop turning before shifting between full forward and full reverse, or you risk motor damage. When nine of the ten LEDs are out, input voltage has dropped below 9.5V and you should recharge. The meter is built for a 12V lead-acid system, not lithium.
What are the X Series weight, propeller, and included components?
The Newport X Series weighs 23 pounds and comes with a large three-blade propeller. In the box: the motor with its 36-inch shaft, that propeller, the installation hardware — drive pin, washer, tightening nut and spanner/wrench — and a 50-amp circuit breaker. A 12V deep-cycle or marine battery, a charger and any battery box or cabling for your run are separate. The 23 pounds is the motor alone; the battery is normally heavier, so count both against your boat's capacity and think about where the weight sits.
Can the X Series be used in salt water, and what care is required?
Yes — the Newport X Series is rated for both salt and fresh water, on stainless steel and zinc hardware. Salt is still corrosive, so the rinse below is required maintenance rather than optional. After every saltwater use, rinse thoroughly with fresh water. Rinse only the areas that contacted salt water and keep the top cover dry, since water there can damage the circuitry inside. Salt water left sitting on metal will corrode it eventually, so the rinse is not optional maintenance. Clear line and weed from the propeller with the battery disconnected, and store the motor where it will not freeze. More detail: Newport saltwater guidance.
What warranty coverage comes with the X Series?
The Newport X Series carries a two-year limited warranty against defects in materials and workmanship, restricted to the original owner and non-transferable. A claim needs proof of purchase within the coverage period plus photos or video of the damage, so keep the receipt and record the serial number. No registration is required and there is no registration deadline. Commercial use of any kind is excluded, along with neglect, abuse, lack of maintenance, accident, improper use or assembly, and failed repair attempts. The buyer pays transport charges on a claim. Full terms are on the Newport warranty page.
